Typ LS
×
![Full Image]()
AVIT, ISO 8434-1 – SWORT
Baureihe / Series: L = Leicht / S = Schwer
24° Dichtkegelanschluss mit O-Ring nach ISO 8434-1 mit montierter Drahtstiftmutter.
| Werkstoff, Oberflächen | Bestellcode |
| Stahl, verzinkt; NBR | 01 |
| Stahl, verzinkt; FKM | 02 |
| Stahl, phosphatiert; NBR | 04 |
| Stahl, phosphatiert; FKM | 05 |
| Edelstahl 1.4571; NBR | 41 |
| Edelstahl 1.4571; FKM | 42 |

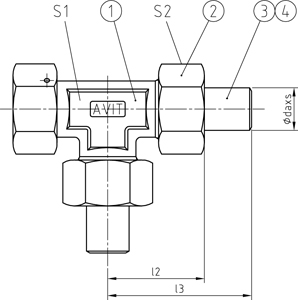

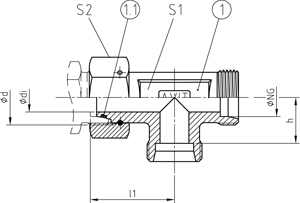

| REIHE | PN | NG | ABMESSUNGEN [mm] | GEWICHT | BESTELLCODE | CAD | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SERIES | DIMENSIONS | WEIGHT | ORDER CODE | DOWNLOAD | ||||||||||
| [bar] | [mm] | d | di | h | l1 | l2 | l3 | S1 | S2 | [kg] | Pos. 1 | Pos. 1-4 | ||
| L | 250 | 15 | M22x1,5 | 10 | 21 | 31 | 38 | 57,5 | 19 | 27 | 0,16 | LS 15 | LS 15 daxs | |
| L | 160 | 18 | M26x1,5 | 13 | 23,5 | 35,5 | 42 | 62 | 24 | 32 | 0,24 | LS 18 | LS 18 daxs | |
| L | 160 | 22 | M30x2,0 | 17 | 27,5 | 40,5 | 45,5 | 67 | 27 | 36 | 0,31 | LS 22 | LS 22 daxs | |
| L | 100 | 28 | M36x2,0 | 22 | 32,5 | 44,5 | 50 | 73,5 | 36 | 46 | 0,56 | LS 28 | LS 28 daxs | |
| L | 100 | 35 | M45x2,0 | 28 | 34,5 | 51 | 59 | 85,5 | 41 | 50 | 0,81 | LS 35 | LS 35 daxs | |
| L | 100 | 42 | M52x2,0 | 34 | 40 | 56 | 64,5 | 91 | 50 | 60 | 1,09 | LS 42 | LS 42 daxs | |
| S | 630 | 10 | M18x1,5 | 6 | 17,5 | 29 | 35 | 51 | 19 | 22 | 0,12 | LS 10 | LS 10 daxs | |
| S | 420 | 12 | M20x1,5 | 8 | 21,5 | 31 | 39,5 | 55,5 | 19 | 24 | 0,15 | LS 12 | LS 12 daxs | |
| S | 420 | 16 | M24x1,5 | 11 | 24,5 | 36,5 | 45 | 66,5 | 24 | 30 | 0,24 | LS 16 | LS 16 daxs | |
| S | 315 | 20 | M30x2,0 | 14 | 26,5 | 43 | 50 | 73 | 27 | 36 | 0,38 | LS 20 | LS 20 daxs | |
| S | 315 | 25 | M36x2,0 | 18 | 30 | 48 | 57 | 85 | 36 | 46 | 0,72 | LS 25 | LS 25 daxs | |
| S | 250 | 30 | M42x2,0 | 23 | 35,5 | 55 | 64 | 93,5 | 41 | 50 | 0,94 | LS 30 | LS 30 daxs | |
| S | 250 | 38 | M52x2,0 | 30 | 41 | 63 | 73,5 | 106 | 50 | 60 | 1,49 | LS 38 | LS 38 daxs | |
| S | 250 | 50 | M68x2,0 | 40 | 67 | 94 | 106,5 | 135,5 | 70 | 80 | 4,6 | LS 50 | LS 50 daxs | |
