Typ TKS
×
![Full Image]()
AVIT angelehnt an ISO 8434-1
Baureihe / Series: L = Leicht / S = Schwer

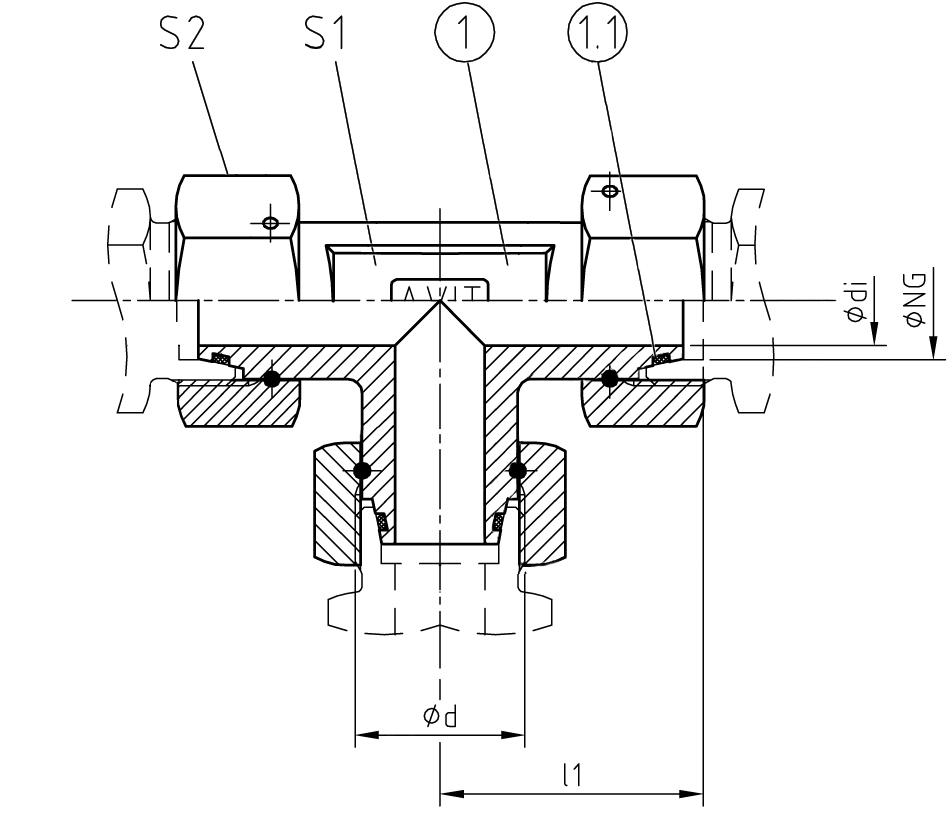

24° Dichtkegelanschluss mit O-Ring nach ISO 8434-1 mit montierter Drahtstiftmutter.
| Werkstoff, Oberflächen | Bestellcode |
| Stahl, verzinkt; NBR | 01 |
| Stahl, verzinkt; FKM | 02 |
| Stahl, phosphatiert; NBR | 04 |
| Stahl, phosphatiert; FKM | 05 |
| Edelstahl 1.4571; NBR | 41 |
| Edelstahl 1.4571; FKM | 42 |
| REIHE | PN | NG | ABMESSUNGEN [mm] | GEWICHT | BESTELLCODE | CAD | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SERIES | DIMENSIONS | WEIGHT | ORDER CODE | DOWNLOAD | |||||||
| [bar] | [mm] | d | di | l1 | S1 | S2 | Pos. 1.1 | [kg] | TYP NG | ||
| L | 250 | 15 | M22x1,5 | 10 | 31 | 19 | 27 | 12,0x2,0 | 0,24 | TKS 15 | |
| L | 160 | 18 | M26x1,5 | 13 | 35,5 | 24 | 32 | 15,0x2,0 | 0,36 | TKS 18 | |
| L | 160 | 22 | M30x2,0 | 17 | 40,5 | 27 | 36 | 20,0x2,0 | 0,46 | TKS 22 | |
| L | 100 | 28 | M36x2,0 | 22 | 41,5 | 36 | 46 | 26,0x2,0 | 0,84 | TKS 28 | |
| L | 100 | 35 | M45x2,0 | 28 | 51 | 41 | 50 | 32,0x2,5 | 1,01 | TKS 35 | |
| L | 100 | 42 | M52x2,0 | 34 | 56 | 50 | 60 | 38,0x2,5 | 1,54 | TKS 42 | |
| S | 630 | 10 | M18x1,5 | 6 | 29 | 19 | 22 | 7,5x1,5 | 0,18 | TKS 10 | |
| S | 420 | 12 | M20x1,5 | 8 | 31 | 19 | 24 | 9,0x1,5 | 0,23 | TKS 12 | |
| S | 420 | 16 | M24x1,5 | 11 | 36,5 | 24 | 30 | 12,0x2,0 | 0,36 | TKS 16 | |
| S | 315 | 20 | M30x2,0 | 14 | 43 | 27 | 36 | 16,3x2,4 | 0,57 | TKS 20 | |
| S | 315 | 25 | M36x2,0 | 18 | 48 | 36 | 46 | 20,3x2,4 | 1,08 | TKS 25 | |
| S | 250 | 30 | M42x2,0 | 23 | 55 | 41 | 50 | 25,3x2,4 | 1,41 | TKS 30 | |
| S | 250 | 38 | M52x2,0 | 30 | 63 | 50 | 60 | 33,3x2,4 | 2,25 | TKS 38 | |
| S | 250 | 50 | M68x2,0 | 40 | 94 | 70 | 80 | 46,0x3,0 | 6,9 | TKS 50 | |
