Typ WV
×
![Full Image]()
AVIT, ISO 8434-1 – E
Baureihe: L = Leicht / S = Schwer

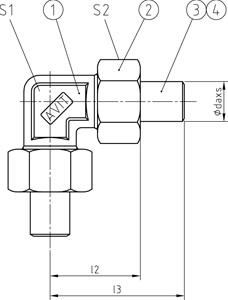

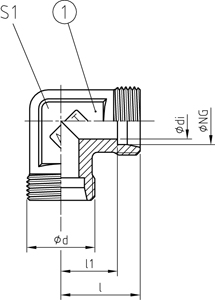

Winkelstutzen mit 24° Konusanschluss mit metrischem Gewinde nach ISO 8434-1.
| Werkstoff, Oberflächen | Bestellcode |
| Stahl, verzinkt; NBR | 01 |
| Stahl, verzinkt; FKM | 02 |
| Stahl, phosphatiert; NBR | 04 |
| Stahl, phosphatiert; FKM | 05 |
| Edelstahl 1.4571; NBR | 41 |
| Edelstahl 1.4571; FKM | 42 |
| REIHE | PN | NG | ABMESSUNGEN [mm] | GEWICHT | BESTELLCODE | CAD | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SERIES | DIMENSIONS | WEIGHT | ORDER CODE | DOWNLOAD | ||||||||||
| [bar] | [mm] | d | di | l | l1 | l2 | l3 | S1 | S2 | [kg] | Pos. 1 | Pos. 1-4 | ||
| L | 420 | 15 | M22x1,5 | 12 | 28 | 21 | 38,5 | 57,5 | 19 | 27 | 0,083 | WV 15 | WV 15 daxs | |
| L | 420 | 18 | M26x1,5 | 15 | 31 | 23,5 | 41 | 62 | 24 | 32 | 0,12 | WV 18 | WV 18 daxs | |
| L | 250 | 22 | M30x2,0 | 19 | 35 | 27,5 | 45,5 | 67 | 27 | 36 | 0,166 | WV 22 | WV 22 daxs | |
| L | 250 | 28 | M36x2,0 | 24 | 38 | 30,5 | 50 | 73,5 | 36 | 41 | 0,299 | WV 28 | WV 28 daxs | |
| L | 250 | 35 | M45x2,0 | 30 | 45 | 34,5 | 58,5 | 85,5 | 41 | 50 | 0,438 | WV 35 | WV 35 daxs | |
| L | 250 | 42 | M52x2,0 | 36 | 51 | 40 | 64,5 | 91 | 50 | 60 | 0,544 | WV 42 | WV 42 daxs | |
| S | 800 | 10 | M18x1,5 | 7 | 25 | 17,5 | 35 | 51,5 | 19 | 22 | 0,073 | WV 10 | WV 10 daxs | |
| S | 630 | 12 | M20x1,5 | 8 | 29 | 21,5 | 39,5 | 55,5 | 19 | 24 | 0,101 | WV 12 | WV 12 daxs | |
| S | 630 | 16 | M24x1,5 | 12 | 33 | 24,5 | 45 | 66,5 | 24 | 30 | 0,147 | WV 16 | WV 16 daxs | |
| S | 420 | 20 | M30x2,0 | 15 | 37 | 26,5 | 50,5 | 73 | 27 | 36 | 0,215 | WV 20 | WV 20 daxs | |
| S | 420 | 25 | M36x2,0 | 19 | 42 | 30 | 57 | 84,5 | 36 | 46 | 0,404 | WV 25 | WV 25 daxs | |
| S | 420 | 30 | M42x2,0 | 24 | 49 | 35,5 | 64 | 93,5 | 41 | 50 | 0,597 | WV 30 | WV 30 daxs | |
| S | 420 | 38 | M52x2,0 | 30 | 57 | 41 | 73,5 | 106 | 50 | 60 | 1,01 | WV 38 | WV 38 daxs | |
| S | 420 | 50 | M68x2,0 | 38 | 85 | 67 | 106,5 | 136 | 70 | 80 | 3,124 | WV 50 | WV 50 daxs | |
