KOR
×
![Full Image]()

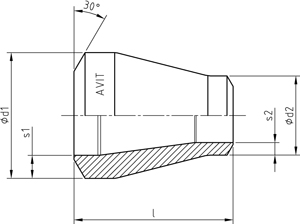

AVIT ≈ DIN EN 10253-2 (DIN 2616-2)
• Über 1.000 Varianten kurzfristig lieferbar
• DIN und ASME Maße (daxs) gerundet
- Stahl / Steel; P235GH (1.0345) – für Dünnwandausführung
- Stahl / Steel; S355J2 (1.0577) – für Dickwandausführung
- Edelstahl 1.4571
| DN1 | NPS1 | d1 | s1 | DN2 | NPS2 | d2 | s2 | l | GEWICHT | BESTELLCODE | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WEIGHT | ORDER CODE | DOWNLOAD | |||||||||
| [mm] | [inch] | [mm] | [mm] | [mm] | [inch] | [mm] | [mm] | [mm] | [kg] | KOR d1 x s1 > d2 x s2 | |
| 32 | 1 1/4“ | 42,4 | 2,6 | - | 3 1/2" | 25,0 | 2,6 | 50 | 0,15 | X-KOR424262526 | |
| 32 | 1 1/4“ | 42,4 | 2,6 | - | 3 1/2" | 30,0 | 2,5 | 50 | 0,15 | X-KOR424263025 | |
| 32 | 1 1/4“ | 42,4 | 5,6 | - | 3 1/2" | 30,0 | 5,0 | 50 | 0,23 | X-KOR42456305 | |
| 32 | 1 1/4“ | 42,4 | 6,0 | - | 3 1/2" | 35,0 | 4,0 | 50 | 0,22 | X-KOR4246354 | |
| 32 | 1 1/4“ | 42,4 | 7,1 | - | 3 1/2" | 38,0 | 5,0 | 50 | 0,26 | X-KOR42471385 | |
| 32 | 1 1/4“ | 42,4 | 7,1 | - | 3 1/2" | 38,0 | 6,0 | 50 | 0,27 | X-KOR42471386 | |
| 32 | 1 1/4“ | 42,4 | 8,0 | - | 3 1/2" | 20,0 | 4,0 | 50 | 0,25 | X-KOR4248204 | |
| 32 | 1 1/4“ | 42,4 | 8,0 | - | 3 1/2" | 38,0 | 5,0 | 50 | 0,27 | X-KOR4248385 | |
| 40 | 1 1/2“ | 48,3 | 10,0 | - | 3 1/2" | 38,0 | 6,0 | 64 | 0,45 | X-KOR48310386 | |
| 40 | 1 1/2“ | 48,3 | 10,0 | - | 3 1/2" | 38,0 | 8,8 | 64 | 0,51 | X-KOR483103888 | |
| 40 | 1 1/2“ | 48,3 | 2,6 | - | 3 1/2" | 20,0 | 2,0 | 64 | 0,28 | X-KOR48326202 | |
| 40 | 1 1/2“ | 48,3 | 2,6 | - | 3 1/2" | 25,0 | 3,0 | 64 | 0,23 | X-KOR48326253 | |
| 40 | 1 1/2“ | 48,3 | 2,6 | - | 3 1/2" | 38,0 | 3,0 | 64 | 0,22 | X-KOR48326383 | |
| 40 | 1 1/2“ | 48,3 | 2,6 | - | 3 1/2" | 42,0 | 3,0 | 64 | 0,21 | X-KOR48326423 | |
| 40 | 1 1/2“ | 48,3 | 2,6 | 32 | 1 1/4“ | 42,4 | 2,6 | 64 | 0,2 | X-KOR4832642426 | |
| 40 | 1 1/2“ | 48,3 | 3,2 | - | 3 1/2" | 16,0 | 2,0 | 64 | 0,28 | X-KOR48332162 | |
| 40 | 1 1/2“ | 48,3 | 3,2 | - | 3 1/2" | 20,0 | 2,5 | 64 | 0,29 | X-KOR483322025 | |
| 40 | 1 1/2“ | 48,3 | 3,2 | - | 3 1/2" | 25,0 | 3,0 | 64 | 0,25 | X-KOR48332253 | |
| 40 | 1 1/2“ | 48,3 | 3,2 | - | 3 1/2" | 38,0 | 5,0 | 64 | 0,29 | X-KOR48332385 | |
| 40 | 1 1/2“ | 48,3 | 3,2 | - | 3 1/2" | 42,0 | 5,5 | 64 | 0,3 | X-KOR483324255 | |
| 40 | 1 1/2“ | 48,3 | 4,0 | - | 3 1/2" | 30,0 | 4,0 | 64 | 0,28 | X-KOR4834304 | |
| 40 | 1 1/2“ | 48,3 | 4,0 | - | 3 1/2" | 38,0 | 4,0 | 64 | 0,28 | X-KOR4834384 | |
| 40 | 1 1/2“ | 48,3 | 4,5 | - | 3 1/2" | 33,4 | 4,5 | 64 | 0,31 | X-KOR4834533445 | |
| 40 | 1 1/2“ | 48,3 | 4,5 | - | 3 1/2" | 38,0 | 4,0 | 64 | 0,29 | X-KOR48345384 | |
| 40 | 1 1/2“ | 48,3 | 5,1 | - | 3 1/2" | 42,2 | 5,6 | 64 | 0,35 | X-KOR4835142256 | |
| 40 | 1 1/2“ | 48,3 | 5,1 | 32 | 1 1/4“ | 42,4 | 3,6 | 64 | 0,3 | X-KOR4835142436 | |
| 40 | 1 1/2“ | 48,3 | 5,1 | 32 | 1 1/4“ | 42,4 | 5,6 | 64 | 0,35 | X-KOR4835142456 | |
| 40 | 1 1/2“ | 48,3 | 5,0 | - | 3 1/2" | 25,0 | 3,0 | 64 | 0,29 | X-KOR4835253 | |
| 40 | 1 1/2“ | 48,3 | 5,0 | - | 3 1/2" | 30,0 | 3,0 | 64 | 0,29 | X-KOR4835303 | |
| 40 | 1 1/2“ | 48,3 | 5,0 | - | 3 1/2" | 38,0 | 4,0 | 64 | 0,31 | X-KOR4835384 | |
| 40 | 1 1/2“ | 48,3 | 5,0 | - | 3 1/2" | 38,0 | 5,0 | 64 | 0,33 | X-KOR4835385 | |
| 40 | 1 1/2“ | 48,3 | 5,0 | 32 | 1 1/4“ | 42,4 | 5,0 | 64 | 0,33 | X-KOR48354245 | |
| 40 | 1 1/2“ | 48,3 | 5,0 | 32 | 1 1/4“ | 42,4 | 5,0 | 64 | 0,33 | X-KOR48354245E | |
| 40 | 1 1/2“ | 48,3 | 6,3 | - | 3 1/2" | 16,0 | 2,5 | 64 | 0,3 | X-KOR483631625 | |
| 40 | 1 1/2“ | 48,3 | 6,3 | - | 3 1/2" | 20,0 | 2,5 | 64 | 0,3 | X-KOR483632025 | |
| 40 | 1 1/2“ | 48,3 | 6,3 | - | 3 1/2" | 25,0 | 3,0 | 64 | 0,31 | X-KOR48363253 | |
| 40 | 1 1/2“ | 48,3 | 6,3 | - | 3 1/2" | 30,0 | 4,0 | 64 | 0,34 | X-KOR48363304 | |
| 40 | 1 1/2“ | 48,3 | 6,3 | - | 3 1/2" | 38,3 | 6,3 | 64 | 0,39 | X-KOR4836338363 | |
| 40 | 1 1/2“ | 48,3 | 6,3 | - | 3 1/2" | 38,0 | 5,0 | 64 | 0,36 | X-KOR48363385 | |
| 40 | 1 1/2“ | 48,3 | 6,3 | 32 | 1 1/4“ | 42,4 | 5,0 | 64 | 0,36 | X-KOR483634245 | |
| 40 | 1 1/2“ | 48,3 | 6,3 | 32 | 1 1/4“ | 42,4 | 5,6 | 64 | 0,36 | X-KOR4836342456 | |
| 40 | 1 1/2“ | 48,3 | 6,3 | 32 | 1 1/4“ | 42,4 | 6,3 | 64 | 0,39 | X-KOR4836342463 | |
| 40 | 1 1/2“ | 48,3 | 7,1 | - | 3 1/2" | 33,4 | 6,4 | 64 | 0,4 | X-KOR4837133464 | |
| 40 | 1 1/2“ | 48,3 | 7,1 | - | 3 1/2" | 38,0 | 5,0 | 64 | 0,38 | X-KOR48371385 | |
| 40 | 1 1/2“ | 48,3 | 7,1 | - | 3 1/2" | 42,2 | 6,3 | 64 | 0,42 | X-KOR4837142263 | |
| 40 | 1 1/2“ | 48,3 | 7,1 | - | 3 1/2" | 38,0 | 6,0 | 64 | 0,42 | X-KOR4837386 | |
| 40 | 1 1/2“ | 48,3 | 8,0 | - | 3 1/2" | 25,0 | 3,0 | 64 | 0,35 | X-KOR4838253 | |
| 40 | 1 1/2“ | 48,3 | 8,0 | - | 3 1/2" | 25,0 | 4,0 | 64 | 0,36 | X-KOR4838254 | |
| 40 | 1 1/2“ | 48,3 | 8,0 | - | 3 1/2" | 30,0 | 4,0 | 64 | 0,37 | X-KOR4838304 | |
| 40 | 1 1/2“ | 48,3 | 8,0 | - | 3 1/2" | 30,0 | 5,0 | 64 | 0,39 | X-KOR4838305 | |
| 40 | 1 1/2“ | 48,3 | 8,0 | - | 3 1/2" | 38,0 | 5,0 | 64 | 0,4 | X-KOR4838385 | |
| 40 | 1 1/2“ | 48,3 | 8,0 | - | 3 1/2" | 38,0 | 6,0 | 64 | 0,42 | X-KOR4838386 | |
| 40 | 1 1/2“ | 48,3 | 8,0 | 32 | 1 1/4“ | 42,4 | 5,6 | 64 | 0,42 | X-KOR483842456 | |
| 40 | 1 1/2“ | 48,3 | 8,0 | 32 | 1 1/4“ | 42,4 | 7,1 | 64 | 0,45 | X-KOR483842471 | |
| 40 | 1 1/2“ | 48,3 | 8,8 | - | 3 1/2" | 16,0 | 3,0 | 64 | 0,35 | X-KOR48388163 | |
| 40 | 1 1/2“ | 48,3 | 8,8 | - | 3 1/2" | 20,0 | 3,5 | 64 | 0,39 | X-KOR483882035 | |
| 40 | 1 1/2“ | 48,3 | 8,8 | - | 3 1/2" | 25,0 | 5,0 | 64 | 0,4 | X-KOR48388255 | |
| 40 | 1 1/2“ | 48,3 | 8,8 | - | 3 1/2" | 30,0 | 5,0 | 64 | 0,4 | X-KOR48388305 | |
| 40 | 1 1/2“ | 48,3 | 8,8 | - | 3 1/2" | 38,0 | 4,0 | 64 | 0,39 | X-KOR48388384 | |
| 40 | 1 1/2“ | 48,3 | 8,8 | - | 3 1/2" | 38,0 | 6,0 | 64 | 0,43 | X-KOR48388386 | |
| 40 | 1 1/2“ | 48,3 | 8,8 | - | 3 1/2" | 38,0 | 8,0 | 64 | 0,33 | X-KOR48388388 | |
| 40 | 1 1/2“ | 48,3 | 8,8 | 32 | 1 1/4“ | 42,4 | 8,0 | 64 | 0,39 | X-KOR483884248 | |
| 50 | 2" | 60,3 | 10,0 | - | 3 1/2" | 25,0 | 3,0 | 76 | 0,62 | X-KOR60310253 | |
| 50 | 2" | 60,3 | 10,0 | - | 3 1/2" | 30,0 | 4,0 | 76 | 0,62 | X-KOR60310304 | |
| 50 | 2" | 60,3 | 10,0 | - | 3 1/2" | 30,0 | 5,0 | 76 | 0,68 | X-KOR60310305 | |
| 50 | 2" | 60,3 | 10,0 | - | 3 1/2" | 30,0 | 6,0 | 76 | 0,7 | X-KOR60310306 | |
| 50 | 2" | 60,3 | 10,0 | - | 3 1/2" | 38,0 | 4,0 | 76 | 0,63 | X-KOR60310384 | |
| 50 | 2" | 60,3 | 10,0 | - | 3 1/2" | 38,0 | 5,0 | 76 | 0,69 | X-KOR60310385 | |
| 50 | 2" | 60,3 | 10,0 | - | 3 1/2" | 38,0 | 6,0 | 76 | 0,69 | X-KOR60310386 | |
| 50 | 2" | 60,3 | 10,0 | - | 3 1/2" | 38,0 | 8,0 | 76 | 0,77 | X-KOR60310388 | |
| 50 | 2" | 60,3 | 10,0 | 32 | 1 1/4“ | 42,4 | 5,0 | 76 | 0,67 | X-KOR603104245 | |
| 50 | 2" | 60,3 | 10,0 | 32 | 1 1/4“ | 42,4 | 5,6 | 76 | 0,69 | X-KOR6031042456 | |
| 50 | 2" | 60,3 | 10,0 | 32 | 1 1/4“ | 42,4 | 6,3 | 76 | 0,71 | X-KOR6031042463 | |
| 50 | 2" | 60,3 | 10,0 | 32 | 1 1/4“ | 42,4 | 7,1 | 76 | 0,74 | X-KOR6031042471 | |
| 50 | 2" | 60,3 | 10,0 | - | 3 1/2" | 45,0 | 9,0 | 76 | 0,8 | X-KOR60310459 | |
| 50 | 2" | 60,3 | 10,0 | 40 | 1 1/2“ | 48,3 | 6,3 | 76 | 0,73 | X-KOR6031048363 | |
| 50 | 2" | 60,3 | 10,0 | 40 | 1 1/2“ | 48,3 | 7,1 | 76 | 0,75 | X-KOR6031048371 | |
| 50 | 2" | 60,3 | 10,0 | 40 | 1 1/2“ | 48,3 | 8,8 | 76 | 0,81 | X-KOR6031048388 | |
| 50 | 2" | 60,3 | 11,0 | - | 3 1/2" | 38,0 | 6,0 | 76 | 0,58 | X-KOR60311386 | |
| 50 | 2" | 60,3 | 11,0 | 40 | 1 1/2“ | 48,3 | 10,2 | 76 | 0,87 | X-KOR60311483102 | |
| 50 | 2" | 60,3 | 11,0 | 40 | 1 1/2“ | 48,3 | 8,8 | 76 | 0,83 | X-KOR6031148388 | |
| 50 | 2" | 60,3 | 11,0 | 50 | 2" | 60,3 | 8,0 | 76 | 0,58 | X-KOR603116038 | |
| 50 | 2" | 60,3 | 12,5 | 32 | 1 1/4“ | 42,4 | 5,6 | 76 | 0,75 | X-KOR60312542456 | |
| 50 | 2" | 60,3 | 12,5 | 32 | 1 1/4“ | 42,4 | 8,8 | 76 | 0,84 | X-KOR60312542488 | |
| 50 | 2" | 60,3 | 12,5 | 40 | 1 1/2“ | 48,3 | 10,0 | 76 | 0,9 | X-KOR60312548310 | |
| 50 | 2" | 60,3 | 2,9 | - | 3 1/2" | 25,0 | 3,0 | 76 | 0,42 | X-KOR60329253 | |
| 50 | 2" | 60,3 | 2,9 | - | 3 1/2" | 38,0 | 3,0 | 76 | 0,35 | X-KOR60329383 | |
| 50 | 2" | 60,3 | 2,9 | - | 3 1/2" | 38,0 | 4,0 | 76 | 0,39 | X-KOR60329384 | |
| 50 | 2" | 60,3 | 2,9 | - | 3 1/2" | 38,0 | 5,0 | 76 | 0,41 | X-KOR60329385 | |
| 50 | 2" | 60,3 | 2,9 | - | 3 1/2" | 42,0 | 3,0 | 76 | 0,34 | X-KOR60329423 | |
| 50 | 2" | 60,3 | 3,2 | - | 3 1/2" | 38,0 | 4,0 | 76 | 0,4 | X-KOR60332384 | |
| 50 | 2" | 60,3 | 3,6 | - | 3 1/2" | 38,0 | 5,0 | 76 | 0,45 | X-KOR60336385 | |
| 50 | 2" | 60,3 | 3,6 | - | 3 1/2" | 42,0 | 3,0 | 76 | 0,38 | X-KOR60336423 | |
| 50 | 2" | 60,3 | 3,6 | 40 | 1 1/2“ | 48,3 | 3,2 | 76 | 0,38 | X-KOR6033648332 | |
| 50 | 2" | 60,3 | 4,0 | 40 | 1 1/2“ | 48,3 | 3,6 | 76 | 0,41 | X-KOR603448336 | |
| 50 | 2" | 60,3 | 4,5 | - | 3 1/2" | 25,0 | 4,0 | 76 | 0,5 | X-KOR60345254 | |
| 50 | 2" | 60,3 | 5,0 | - | 3 1/2" | 25,0 | 3,0 | 76 | 0,44 | X-KOR6035253 | |
| 50 | 2" | 60,3 | 5,0 | - | 3 1/2" | 38,0 | 5,0 | 76 | 0,5 | X-KOR6035385 | |
| 50 | 2" | 60,3 | 5,6 | - | 3 1/2" | 30,0 | 5,6 | 76 | 0,52 | X-KOR603563056 | |
| 50 | 2" | 60,3 | 5,6 | - | 3 1/2" | 38,0 | 4,0 | 76 | 0,49 | X-KOR60356384 | |
| 50 | 2" | 60,3 | 5,6 | - | 3 1/2" | 38,0 | 5,0 | 76 | 0,52 | X-KOR60356385 | |
| 50 | 2" | 60,3 | 5,6 | 32 | 1 1/4“ | 42,4 | 4,0 | 76 | 0,49 | X-KOR603564244 | |
| 50 | 2" | 60,3 | 5,6 | 40 | 1 1/2“ | 48,3 | 4,5 | 76 | 0,51 | X-KOR6035648345 | |
| 50 | 2" | 60,3 | 5,6 | 40 | 1 1/2“ | 48,3 | 5,6 | 76 | 0,55 | X-KOR6035648356 | |
| 50 | 2" | 60,3 | 6,3 | - | 3 1/2" | 42,0 | 4,0 | 76 | 0,52 | X-KOR60363424 | |
| 50 | 2" | 60,3 | 6,3 | 32 | 1 1/4“ | 42,4 | 5,6 | 76 | 0,58 | X-KOR6036342456 | |
| 50 | 2" | 60,3 | 6,3 | 32 | 1 1/4“ | 42,4 | 7,1 | 76 | 0,62 | X-KOR6036342471 | |
| 50 | 2" | 60,3 | 6,3 | 40 | 1 1/2“ | 48,3 | 4,5 | 76 | 0,54 | X-KOR6036348345 | |
| 50 | 2" | 60,3 | 6,3 | 40 | 1 1/2“ | 48,3 | 5,0 | 76 | 0,56 | X-KOR603634835 | |
| 50 | 2" | 60,3 | 6,3 | 40 | 1 1/2“ | 48,3 | 5,1 | 76 | 0,56 | X-KOR6036348351 | |
| 50 | 2" | 60,3 | 8,0 | - | 3 1/2" | 30,0 | 4,0 | 76 | 0,61 | X-KOR6038304 | |
| 50 | 2" | 60,3 | 8,0 | - | 3 1/2" | 38,0 | 4,0 | 76 | 0,57 | X-KOR6038384 | |
| 50 | 2" | 60,3 | 8,0 | - | 3 1/2" | 38,0 | 5,0 | 76 | 0,61 | X-KOR6038385 | |
| 50 | 2" | 60,3 | 8,0 | - | 3 1/2" | 38,0 | 6,0 | 76 | 0,63 | X-KOR6038386 | |
| 50 | 2" | 60,3 | 8,0 | - | 3 1/2" | 42,0 | 3,0 | 76 | 0,54 | X-KOR6038423 | |
| 50 | 2" | 60,3 | 8,0 | 32 | 1 1/4“ | 42,4 | 5,6 | 76 | 0,62 | X-KOR603842456 | |
| 50 | 2" | 60,3 | 8,0 | 40 | 1 1/2“ | 48,3 | 5,0 | 76 | 0,63 | X-KOR60384835 | |
| 50 | 2" | 60,3 | 8,0 | 40 | 1 1/2“ | 48,3 | 6,3 | 76 | 0,67 | X-KOR603848363 | |
| 50 | 2" | 60,3 | 8,0 | 40 | 1 1/2“ | 48,3 | 7,1 | 76 | 0,69 | X-KOR603848371 | |
| 50 | 2" | 60,3 | 8,0 | 40 | 1 1/2“ | 48,3 | 8,0 | 76 | 0,72 | X-KOR60384838 | |
| 50 | 2" | 60,3 | 8,0 | 40 | 1 1/2“ | 48,3 | 8,8 | 76 | 0,75 | X-KOR603848388 | |
| 50 | 2" | 60,3 | 8,0 | - | 3 1/2" | 50,0 | 6,0 | 76 | 0,66 | X-KOR6038506 | |
| 50 | 2" | 60,3 | 8,8 | - | 3 1/2" | 33,4 | 4,5 | 76 | 0,61 | X-KOR6038833445 | |
| 50 | 2" | 60,3 | 8,8 | 32 | 1 1/4“ | 42,4 | 6,3 | 76 | 0,68 | X-KOR6038842463 | |
| 50 | 2" | 60,3 | 8,8 | 40 | 1 1/2“ | 48,3 | 7,1 | 76 | 0,74 | X-KOR6038848371 | |
| 65 | 2 1/2" | 76,1 | 10,0 | - | 3 1/2" | 21,3 | 2,6 | 90 | 1,06 | X-KOR7611021326 | |
| 65 | 2 1/2" | 76,1 | 10,0 | - | 3 1/2" | 38,0 | 5,0 | 90 | 1,02 | X-KOR76110385 | |
| 65 | 2 1/2" | 76,1 | 10,0 | - | 3 1/2" | 38,0 | 6,0 | 90 | 1,07 | X-KOR76110386 | |
| 65 | 2 1/2" | 76,1 | 10,0 | 50 | 2" | 60,3 | 6,3 | 90 | 1,15 | X-KOR7611060363 | |
| 65 | 2 1/2" | 76,1 | 10,0 | 50 | 2" | 60,3 | 8,0 | 90 | 1,24 | X-KOR761106038 | |
| 65 | 2 1/2" | 76,1 | 12,5 | 32 | 1 1/4“ | 42,4 | 7,1 | 90 | 1,24 | X-KOR76112542471 | |
| 65 | 2 1/2" | 76,1 | 12,5 | 40 | 1 1/2“ | 48,3 | 10,0 | 90 | 1,37 | X-KOR76112548310 | |
| 65 | 2 1/2" | 76,1 | 12,5 | 40 | 1 1/2“ | 48,3 | 10,2 | 90 | 1,27 | X-KOR761125483102 | |
| 65 | 2 1/2" | 76,1 | 12,5 | 40 | 1 1/2“ | 48,3 | 8,0 | 90 | 1,3 | X-KOR7611254838 | |
| 65 | 2 1/2" | 76,1 | 12,5 | - | 3 1/2" | 50,0 | 10,0 | 90 | 1,38 | X-KOR7611255010 | |
| 65 | 2 1/2" | 76,1 | 12,5 | - | 3 1/2" | 50,0 | 6,0 | 90 | 1,22 | X-KOR761125506 | |
| 65 | 2 1/2" | 76,1 | 12,5 | - | 3 1/2" | 50,0 | 8,0 | 90 | 1,31 | X-KOR761125508 | |
| 65 | 2 1/2" | 76,1 | 12,5 | 50 | 2" | 60,3 | 10,0 | 90 | 1,45 | X-KOR76112560310 | |
| 65 | 2 1/2" | 76,1 | 12,5 | 50 | 2" | 60,3 | 11,0 | 90 | 1,49 | X-KOR76112560311 | |
| 65 | 2 1/2" | 76,1 | 12,5 | 50 | 2" | 60,3 | 12,5 | 90 | 1,54 | X-KOR761125603125 | |
| 65 | 2 1/2" | 76,1 | 12,5 | - | 3 1/2" | 70,0 | 12,5 | 90 | 1,62 | X-KOR76112570125 | |
| 65 | 2 1/2" | 76,1 | 12,5 | - | 3 1/2" | 70,0 | 14,2 | 90 | 1,68 | X-KOR76112570142 | |
| 65 | 2 1/2" | 76,1 | 14,2 | 32 | 1 1/4“ | 42,4 | 3,2 | 90 | 1,15 | X-KOR76114242432 | |
| 65 | 2 1/2" | 76,1 | 14,2 | 32 | 1 1/4“ | 42,4 | 8,0 | 90 | 1,61 | X-KOR7611424248 | |
| 65 | 2 1/2" | 76,1 | 14,2 | - | 3 1/2" | 48,3 | 10,0 | 90 | 1,43 | X-KOR76114248310 | |
| 65 | 2 1/2" | 76,1 | 14,2 | - | 3 1/2" | 48,3 | 8,8 | 90 | 1,39 | X-KOR76114248388 | |
| 65 | 2 1/2" | 76,1 | 14,2 | 50 | 2" | 60,3 | 10,0 | 90 | 1,51 | X-KOR76114260310 | |
| 65 | 2 1/2" | 76,1 | 14,2 | 50 | 2" | 60,3 | 11,0 | 90 | 1,55 | X-KOR76114260311 | |
| 65 | 2 1/2" | 76,1 | 14,2 | 50 | 2" | 60,3 | 12,5 | 90 | 1,61 | X-KOR761142603125 | |
| 65 | 2 1/2" | 76,1 | 14,5 | - | 3 1/2" | 42,2 | 7,1 | 90 | 1,31 | X-KOR76114542271 | |
| 65 | 2 1/2" | 76,1 | 2,9 | - | 3 1/2" | 38,0 | 3,0 | 90 | 0,56 | X-KOR76129383 | |
| 65 | 2 1/2" | 76,1 | 2,9 | - | 3 1/2" | 42,0 | 3,0 | 90 | 0,56 | X-KOR76129423 | |
| 65 | 2 1/2" | 76,1 | 2,9 | 32 | 1 1/4“ | 42,4 | 2,6 | 90 | 0,54 | X-KOR7612942426 | |
| 65 | 2 1/2" | 76,1 | 3,6 | - | 3 1/2" | 38,0 | 4,0 | 90 | 0,67 | X-KOR76136384 | |
| 65 | 2 1/2" | 76,1 | 5,0 | 50 | 2" | 60,3 | 4,5 | 90 | 0,76 | X-KOR761560345 | |
| 65 | 2 1/2" | 76,1 | 5,0 | 50 | 2" | 60,3 | 4,5 | 90 | 0,76 | X-KOR761560345E | |
| 65 | 2 1/2" | 76,1 | 5,6 | 40 | 1 1/2“ | 48,3 | 5,6 | 90 | 0,85 | X-KOR7615648356 | |
| 65 | 2 1/2" | 76,1 | 6,3 | - | 3 1/2" | 42,0 | 4,0 | 90 | 0,81 | X-KOR76163424 | |
| 65 | 2 1/2" | 76,1 | 6,3 | 50 | 2" | 60,3 | 12,5 | 90 | 1,24 | X-KOR76163603125 | |
| 65 | 2 1/2" | 76,1 | 6,3 | 50 | 2" | 60,3 | 2,9 | 90 | 0,75 | X-KOR7616360329 | |
| 65 | 2 1/2" | 76,1 | 6,3 | 50 | 2" | 60,3 | 5,0 | 90 | 0,87 | X-KOR761636035 | |
| 65 | 2 1/2" | 76,1 | 7,1 | - | 3 1/2" | 38,0 | 4,0 | 90 | 0,85 | X-KOR76171384 | |
| 65 | 2 1/2" | 76,1 | 7,1 | 50 | 2" | 60,3 | 5,6 | 90 | 0,95 | X-KOR7617160356 | |
| 65 | 2 1/2" | 76,1 | 7,1 | 50 | 2" | 60,3 | 6,0 | 90 | 0,98 | X-KOR761716036 | |
| 65 | 2 1/2" | 76,1 | 7,1 | 50 | 2" | 60,3 | 8,0 | 90 | 1,08 | X-KOR761716038 | |
| 65 | 2 1/2" | 76,1 | 8,0 | 25 | #NV | 33,7 | 3,6 | 90 | 0,88 | X-KOR761833736 | |
| 65 | 2 1/2" | 76,1 | 8,0 | - | 3 1/2" | 38,0 | 4,0 | 90 | 0,9 | X-KOR7618384 | |
| 80 | 3" | 88,9 | 10,0 | 50 | 2" | 60,3 | 10,0 | 90 | 1,57 | X-KOR8891060310 | |
| 80 | 3" | 88,9 | 10,0 | 50 | 2" | 60,3 | 8,0 | 90 | 1,47 | X-KOR889106038 | |
| 80 | 3" | 88,9 | 11,0 | 40 | 1 1/2“ | 48,3 | 8,0 | 90 | 1,52 | X-KOR889114838 | |
| 80 | 3" | 88,9 | 11,0 | 50 | 2" | 60,3 | 10,0 | 90 | 1,62 | X-KOR8891160310 | |
| 80 | 3" | 88,9 | 11,0 | 50 | 2" | 60,3 | 8,0 | 90 | 1,53 | X-KOR889116038 | |
| 80 | 3" | 88,9 | 11,0 | 65 | 2 1/2" | 76,1 | 10,0 | 90 | 1,69 | X-KOR8891176110 | |
| 80 | 3" | 88,9 | 11,0 | 65 | 2 1/2" | 76,1 | 6,3 | 90 | 1,46 | X-KOR8891176163 | |
| 80 | 3" | 88,9 | 12,5 | 50 | 2" | 60,3 | 8,8 | 90 | 1,65 | X-KOR88912560388 | |
| 80 | 3" | 88,9 | 12,5 | 65 | 2 1/2" | 76,1 | 10,0 | 90 | 1,78 | X-KOR88912576110 | |
| 80 | 3" | 88,9 | 14,2 | - | 3 1/2" | 38,0 | 6,0 | 90 | 1,5 | X-KOR889142386 | |
| 80 | 3" | 88,9 | 14,2 | 32 | 1 1/4“ | 42,4 | 7,1 | 90 | 1,5 | X-KOR88914242471 | |
| 80 | 3" | 88,9 | 14,2 | 40 | 1 1/2“ | 48,3 | 10,0 | 90 | 1,71 | X-KOR88914248310 | |
| 80 | 3" | 88,9 | 14,2 | 40 | 1 1/2“ | 48,3 | 7,1 | 90 | 1,59 | X-KOR88914248371 | |
| 80 | 3" | 88,9 | 14,2 | 40 | 1 1/2“ | 48,3 | 8,0 | 90 | 1,63 | X-KOR8891424838 | |
| 80 | 3" | 88,9 | 14,2 | - | 3 1/2" | 50,0 | 6,0 | 90 | 1,55 | X-KOR889142506 | |
| 80 | 3" | 88,9 | 14,2 | 50 | 2" | 60,3 | 10,0 | 90 | 1,74 | X-KOR88914260310 | |
| 80 | 3" | 88,9 | 14,2 | 65 | 2 1/2" | 76,1 | 10,0 | 90 | 1,87 | X-KOR88914276110 | |
| 80 | 3" | 88,9 | 14,2 | 65 | 2 1/2" | 76,1 | 12,5 | 90 | 2,01 | X-KOR889142761125 | |
| 80 | 3" | 88,9 | 17,5 | 40 | 1 1/2“ | 48,3 | 8,0 | 90 | 1,77 | X-KOR8891754838 | |
| 80 | 3" | 88,9 | 17,5 | 65 | 2 1/2" | 76,1 | 12,5 | 90 | 1,64 | X-KOR889175761125 | |
| 80 | 3" | 88,9 | 17,5 | 65 | 2 1/2" | 76,1 | 14,2 | 90 | 2,16 | X-KOR889175761142 | |
| 80 | 3" | 88,9 | 20,0 | 65 | 2 1/2" | 76,1 | 17,5 | 90 | 2,46 | X-KOR88920761175 | |
| 80 | 3" | 88,9 | 3,2 | - | 3 1/2" | 42,0 | 3,0 | 90 | 0,72 | X-KOR88932423 | |
| 80 | 3" | 88,9 | 3,2 | 40 | 1 1/2“ | 48,3 | 4,5 | 90 | 0,8 | X-KOR8893248345 | |
| 80 | 3" | 88,9 | 3,2 | 65 | 2 1/2" | 76,1 | 3,2 | 90 | 0,66 | X-KOR8893276132 | |
| 80 | 3" | 88,9 | 5,6 | 40 | 1 1/2“ | 48,3 | 4,0 | 90 | 0,95 | X-KOR889564834 | |
| 80 | 3" | 88,9 | 5,6 | 40 | 1 1/2“ | 48,3 | 4,0 | 90 | 0,95 | X-KOR889564834E | |
| 80 | 3" | 88,9 | 5,6 | 50 | 2" | 60,3 | 5,0 | 90 | 1 | X-KOR889566035 | |
| 80 | 3" | 88,9 | 7,6 | 50 | 2" | 60,3 | 2,9 | 90 | 1,01 | X-KOR8897660329 | |
| - | 3 1/2" | 101,6 | 10,0 | 50 | 2" | 60,3 | 6,3 | 100 | 1,72 | X-KOR10161060363 | |
| - | 3 1/2" | 101,6 | 11,0 | 50 | 2" | 60,3 | 8,0 | 100 | 1,98 | X-KOR1016116038 | |
| - | 3 1/2" | 101,6 | 11,0 | 50 | 2" | 60,3 | 8,8 | 100 | 2,03 | X-KOR10161160388 | |
| - | 3 1/2" | 101,6 | 11,0 | 65 | 2 1/2" | 76,1 | 10,0 | 100 | 2,17 | X-KOR10161176110 | |
| - | 3 1/2" | 101,6 | 12,5 | 65 | 2 1/2" | 76,1 | 10,0 | 100 | 2,29 | X-KOR101612576110 | |
| - | 3 1/2" | 101,6 | 12,5 | 80 | 3" | 88,9 | 11,0 | 100 | 2,42 | X-KOR101612588911 | |
| - | 3 1/2" | 101,6 | 14,2 | 50 | 2" | 60,3 | 10,0 | 100 | 2,32 | X-KOR101614260310 | |
| - | 3 1/2" | 101,6 | 14,2 | 50 | 2" | 60,3 | 8,0 | 100 | 2,21 | X-KOR10161426038 | |
| - | 3 1/2" | 101,6 | 14,2 | 80 | 3" | 88,9 | 11,0 | 100 | 2,54 | X-KOR101614288911 | |
| - | 3 1/2" | 101,6 | 16,0 | 50 | 2" | 60,3 | 10,0 | 100 | 2,43 | X-KOR10161660310 | |
| - | 3 1/2" | 101,6 | 16,0 | 65 | 2 1/2" | 76,1 | 12,5 | 100 | 2,73 | X-KOR101616761125 | |
| - | 3 1/2" | 101,6 | 16,0 | 80 | 3" | 88,9 | 14,2 | 100 | 2,89 | X-KOR101616889142 | |
| - | 3 1/2" | 101,6 | 17,5 | 50 | 2" | 60,3 | 12,5 | 100 | 2,64 | X-KOR1016175603125 | |
| - | 3 1/2" | 101,6 | 20,0 | 50 | 2" | 60,3 | 10,0 | 100 | 2,61 | X-KOR10162060310 | |
| - | 3 1/2" | 101,6 | 20,0 | 50 | 2" | 60,3 | 11,0 | 100 | 2,65 | X-KOR10162060311 | |
| - | 3 1/2" | 101,6 | 20,0 | - | 3 1/2" | 70,0 | 12,5 | 100 | 2,82 | X-KOR10162070125 | |
| - | 3 1/2" | 101,6 | 20,0 | 65 | 2 1/2" | 76,1 | 12,5 | 100 | 2,89 | X-KOR101620761125 | |
| - | 3 1/2" | 101,6 | 20,0 | 65 | 2 1/2" | 76,1 | 14,2 | 100 | 2,98 | X-KOR101620761142 | |
| - | 3 1/2" | 101,6 | 20,0 | 80 | 3" | 88,9 | 14,2 | 100 | 3,12 | X-KOR101620889142 | |
| - | 3 1/2" | 101,6 | 8,8 | 40 | 1 1/2“ | 48,3 | 4,5 | 100 | 1,67 | X-KOR10168848345 | |
| - | 3 1/2" | 101,6 | 8,8 | 50 | 2" | 60,3 | 5,6 | 100 | 1,65 | X-KOR10168860356 | |
| - | 3 1/2" | 101,6 | 8,8 | 65 | 2 1/2" | 76,1 | 6,3 | 100 | 1,78 | X-KOR10168876163 | |
| - | 3 1/2" | 101,6 | 8,8 | 65 | 2 1/2" | 76,1 | 7,1 | 100 | 1,78 | X-KOR10168876171 | |
| - | 3 1/2" | 133,0 | 25,0 | - | 3 1/2" | 101,6 | 16,0 | 127 | 6,07 | X-KOR13325101616 | |
| - | 3 1/2" | 154,0 | 28,0 | - | 3 1/2" | 101,6 | 12,5 | 140 | 7,66 | X-KOR154281016125 | |
| - | 3 1/2" | 159,0 | 28,0 | - | 3 1/2" | 108,0 | 17,5 | 140 | 8,64 | X-KOR15928108175 | |
| - | 3 1/2" | 16,0 | 2,0 | - | 3 1/2" | 12,0 | 1,5 | 38 | 0,02 | X-KOR1621215 | |
| - | 3 1/2" | 16,0 | 2,0 | - | 3 1/2" | 12,0 | 2,0 | 38 | 0,03 | X-KOR162122 | |
| - | 3 1/2" | 16,0 | 2,5 | - | 3 1/2" | 12,0 | 2,0 | 38 | 0,03 | X-KOR1625122 | |
| - | 3 1/2" | 16,0 | 2,5 | - | 3 1/2" | 12,0 | 2,5 | 38 | 0,03 | X-KOR16251225 | |
| - | 3 1/2" | 177,8 | 30,0 | 125 | 5" | 139,7 | 22,0 | 140 | 11,34 | X-KOR177830139722 | |
| - | 3 1/2" | 20,0 | 2,5 | - | 3 1/2" | 10,0 | 2,0 | 38 | 0,04 | X-KOR2025102 | |
| - | 3 1/2" | 20,0 | 2,5 | - | 3 1/2" | 12,0 | 2,0 | 38 | 0,04 | X-KOR2025122 | |
| - | 3 1/2" | 20,0 | 2,5 | - | 3 1/2" | 16,0 | 2,0 | 38 | 0,04 | X-KOR2025162 | |
| - | 3 1/2" | 20,0 | 2,5 | - | 3 1/2" | 16,0 | 2,5 | 38 | 0,04 | X-KOR20251625 | |
| - | 3 1/2" | 20,0 | 3,0 | - | 3 1/2" | 10,0 | 2,0 | 38 | 0,04 | X-KOR203102 | |
| - | 3 1/2" | 20,0 | 3,0 | - | 3 1/2" | 12,0 | 2,5 | 38 | 0,04 | X-KOR2031225 | |
| - | 3 1/2" | 20,0 | 3,0 | - | 3 1/2" | 16,0 | 2,5 | 38 | 0,04 | X-KOR2031625 | |
| - | 3 1/2" | 20,0 | 4,0 | - | 3 1/2" | 16,0 | 2,5 | 38 | 0,05 | X-KOR2041625 | |
| - | 3 1/2" | 21,3 | 2,0 | - | 3 1/2" | 17,2 | 1,8 | 38 | 0,04 | X-KOR213217218 | |
| - | 3 1/2" | 21,3 | 3,73 | - | 3 1/2" | 12,0 | 2,0 | 38 | 0,05 | X-KOR213373122 | |
| - | 3 1/2" | 22,0 | 2,5 | - | 3 1/2" | 18,0 | 2,0 | 38 | 0,04 | X-KOR2225182 | |
| - | 3 1/2" | 22,0 | 3,0 | - | 3 1/2" | 20,0 | 3,0 | 38 | 0,69 | X-KOR223203 | |
| - | 3 1/2" | 24,4 | 4,19 | - | 3 1/2" | 15,88 | 2,77 | 38 | 0,05 | X-KOR2444115827 | |
| - | 3 1/2" | 25,0 | 3,0 | - | 3 1/2" | 12,0 | 1,5 | 38 | 0,06 | X-KOR2531215 | |
| - | 3 1/2" | 25,0 | 3,0 | - | 3 1/2" | 16,0 | 2,0 | 38 | 0,05 | X-KOR253162 | |
| - | 3 1/2" | 25,0 | 3,0 | - | 3 1/2" | 16,0 | 2,5 | 38 | 0,05 | X-KOR2531625 | |
| - | 3 1/2" | 25,0 | 3,0 | - | 3 1/2" | 20,0 | 2,5 | 38 | 0,06 | X-KOR2532025 | |
| - | 3 1/2" | 25,0 | 3,0 | - | 3 1/2" | 20,0 | 3,0 | 38 | 0,06 | X-KOR253203 | |
| - | 3 1/2" | 25,0 | 4,0 | - | 3 1/2" | 12,0 | 2,0 | 38 | 0,06 | X-KOR254122 | |
| - | 3 1/2" | 25,0 | 4,0 | - | 3 1/2" | 16,0 | 2,5 | 38 | 0,07 | X-KOR2541625 | |
| - | 3 1/2" | 25,0 | 4,0 | - | 3 1/2" | 20,0 | 3,0 | 38 | 0,07 | X-KOR254203 | |
| - | 3 1/2" | 25,0 | 5,0 | - | 3 1/2" | 16,0 | 3,0 | 38 | 0,07 | X-KOR255163 | |
| - | 3 1/2" | 26,7 | 3,91 | - | 3 1/2" | 21,3 | 3,73 | 38 | 0,08 | X-KOR2673921337 | |
| - | 3 1/2" | 27,0 | 3,9 | - | 3 1/2" | 20,0 | 3,0 | 38 | 0,08 | X-KOR2739203 | |
| - | 3 1/2" | 28,0 | 2,0 | - | 3 1/2" | 20,0 | 2,0 | 38 | 0,06 | X-KOR282202 | |
| - | 3 1/2" | 28,0 | 2,0 | - | 3 1/2" | 22,0 | 2,0 | 38 | 0,06 | X-KOR282222 | |
| - | 3 1/2" | 28,0 | 2,5 | - | 3 1/2" | 12,0 | 2,0 | 38 | 0,06 | X-KOR2825122 | |
| - | 3 1/2" | 33,4 | 6,35 | - | 3 1/2" | 25,0 | 3,0 | 50 | 0,16 | X-KOR334635253 | |
| - | 3 1/2" | 33,4 | 6,35 | - | 3 1/2" | 30,0 | 4,0 | 50 | 0,17 | X-KOR334635304 | |
| - | 3 1/2" | 34,0 | 5,0 | - | 3 1/2" | 30,0 | 4,0 | 50 | 0,16 | X-KOR345304 | |
| - | 3 1/2" | 34,0 | 6,4 | - | 3 1/2" | 20,0 | 2,5 | 50 | 0,16 | X-KOR34642025 | |
| - | 3 1/2" | 38,0 | 3,0 | - | 3 1/2" | 25,0 | 3,0 | 50 | 0,14 | X-KOR383253 | |
| - | 3 1/2" | 38,0 | 3,0 | - | 3 1/2" | 30,0 | 4,0 | 50 | 0,15 | X-KOR383304 | |
| - | 3 1/2" | 38,0 | 4,0 | - | 3 1/2" | 30,0 | 4,0 | 50 | 0,17 | X-KOR384304 | |
| - | 3 1/2" | 38,0 | 5,0 | - | 3 1/2" | 16,0 | 2,0 | 50 | 0,17 | X-KOR385162 | |
| - | 3 1/2" | 38,0 | 5,0 | - | 3 1/2" | 20,0 | 2,5 | 50 | 0,16 | X-KOR3852025 | |
| - | 3 1/2" | 38,0 | 5,0 | - | 3 1/2" | 20,0 | 3,0 | 50 | 0,17 | X-KOR385203 | |
| - | 3 1/2" | 38,0 | 5,0 | - | 3 1/2" | 25,0 | 3,0 | 50 | 0,17 | X-KOR385253 | |
| - | 3 1/2" | 38,0 | 5,0 | - | 3 1/2" | 25,0 | 4,0 | 50 | 0,18 | X-KOR385254 | |
| - | 3 1/2" | 38,0 | 5,0 | - | 3 1/2" | 30,0 | 4,0 | 50 | 0,18 | X-KOR385304 | |
| - | 3 1/2" | 38,0 | 5,0 | - | 3 1/2" | 30,0 | 5,0 | 50 | 0,2 | X-KOR385305 | |
| - | 3 1/2" | 38,0 | 6,0 | - | 3 1/2" | 20,0 | 3,0 | 50 | 0,18 | X-KOR386203 | |
| - | 3 1/2" | 38,0 | 6,0 | - | 3 1/2" | 25,0 | 3,0 | 50 | 0,18 | X-KOR386253 | |
| - | 3 1/2" | 38,0 | 6,0 | - | 3 1/2" | 25,0 | 4,0 | 50 | 0,19 | X-KOR386254 | |
| - | 3 1/2" | 38,0 | 6,0 | - | 3 1/2" | 26,7 | 3,91 | 50 | 0,19 | X-KOR38626739 | |
| - | 3 1/2" | 38,0 | 6,0 | - | 3 1/2" | 30,0 | 5,0 | 50 | 0,21 | X-KOR386305 | |
| - | 3 1/2" | 38,0 | 6,0 | - | 3 1/2" | 33,4 | 4,55 | 50 | 0,2 | X-KOR38633445 | |
| - | 3 1/2" | 38,0 | 7,0 | - | 3 1/2" | 25,0 | 4,0 | 50 | 0,21 | X-KOR387254 | |
| - | 3 1/2" | 42,2 | 6,35 | - | 3 1/2" | 38,0 | 5,0 | 50 | 0,24 | X-KOR422635385 | |
| - | 3 1/2" | 42,0 | 3,0 | - | 3 1/2" | 25,0 | 3,0 | 50 | 0,16 | X-KOR423253 | |
| - | 3 1/2" | 42,0 | 3,0 | - | 3 1/2" | 30,0 | 4,0 | 50 | 0,18 | X-KOR423304 | |
| - | 3 1/2" | 42,0 | 3,0 | - | 3 1/2" | 35,0 | 4,0 | 50 | 0,19 | X-KOR423354 | |
| - | 3 1/2" | 42,0 | 3,0 | - | 3 1/2" | 38,0 | 5,0 | 50 | 0,19 | X-KOR423385 | |
| - | 3 1/2" | 42,7 | 2,8 | - | 3 1/2" | 28,0 | 2,0 | 50 | 0,14 | X-KOR42728282 | |
| - | 3 1/2" | 42,7 | 6,4 | - | 3 1/2" | 25,0 | 3,0 | 50 | 0,22 | X-KOR42764253 | |
| - | 3 1/2" | 48,6 | 2,8 | - | 3 1/2" | 35,0 | 2,0 | 64 | 0,2 | X-KOR48628352 | |
| - | 3 1/2" | 48,6 | 7,1 | - | 3 1/2" | 30,0 | 4,0 | 64 | 0,35 | X-KOR48671304 | |
| - | 3 1/2" | 50,0 | 5,0 | - | 3 1/2" | 38,0 | 4,0 | 64 | 0,31 | X-KOR505384 | |
| - | 3 1/2" | 50,0 | 5,0 | - | 3 1/2" | 38,0 | 5,0 | 64 | 0,33 | X-KOR505385 | |
| - | 3 1/2" | 50,0 | 6,0 | - | 3 1/2" | 25,0 | 3,0 | 64 | 0,3 | X-KOR506253 | |
| - | 3 1/2" | 50,0 | 6,0 | - | 3 1/2" | 38,0 | 5,0 | 64 | 0,36 | X-KOR506385 | |
| - | 3 1/2" | 50,0 | 6,0 | - | 3 1/2" | 42,0 | 3,0 | 64 | 0,32 | X-KOR506423 | |
| - | 3 1/2" | 55,0 | 5,0 | - | 3 1/2" | 48,3 | 5,0 | 76 | 0,46 | X-KOR5554835 | |
| - | 3 1/2" | 60,0 | 10,0 | - | 3 1/2" | 40,0 | 8,0 | 76 | 0,76 | X-KOR6010408 | |
| - | 3 1/2" | 70,0 | 11,0 | 50 | 2" | 60,3 | 10,0 | 90 | 1,27 | X-KOR701160310 | |
| - | 3 1/2" | 70,0 | 14,2 | 40 | 1 1/2“ | 48,3 | 8,0 | 90 | 1,24 | X-KOR701424838 | |
| - | 3 1/2" | 73,0 | 9,5 | 50 | 2" | 60,3 | 8,8 | 90 | 1,2 | X-KOR739560388 | |
| - | 3 1/2" | 80,0 | 10,0 | - | 3 1/2" | 66,0 | 8,5 | 90 | 1,35 | X-KOR80106685 | |
| - | 3 1/2" | 82,5 | 14,7 | 65 | 2 1/2" | 76,1 | 12,5 | 90 | 1,88 | X-KOR825147761125 | |
| 100 | 4" | 114,3 | 12,5 | - | 3 1/2" | 76,1 | 8,0 | 100 | 2,46 | X-KOR11431257618 | |
| 100 | 4" | 114,3 | 14,2 | - | 3 1/2" | 101,6 | 12,5 | 100 | 3,06 | X-KOR11431421016125 | |
| 100 | 4" | 114,3 | 14,2 | - | 3 1/2" | 60,3 | 8,0 | 100 | 2,48 | X-KOR11431426038 | |
| 100 | 4" | 114,3 | 14,2 | - | 3 1/2" | 76,1 | 10,0 | 100 | 2,74 | X-KOR114314276110 | |
| 100 | 4" | 114,3 | 14,2 | - | 3 1/2" | 88,9 | 11,0 | 100 | 2,88 | X-KOR114314288911 | |
| 100 | 4" | 114,3 | 16,0 | - | 3 1/2" | 101,6 | 14,2 | 100 | 3,34 | X-KOR1143161016142 | |
| 100 | 4" | 114,3 | 17,5 | - | 3 1/2" | 101,6 | 16,0 | 100 | 3,15 | X-KOR1143175101616 | |
| 100 | 4" | 114,3 | 17,5 | - | 3 1/2" | 38,0 | 6,0 | 100 | 2,55 | X-KOR1143175386 | |
| 100 | 4" | 114,3 | 17,5 | - | 3 1/2" | 48,3 | 8,0 | 100 | 2,85 | X-KOR11431754838 | |
| 100 | 4" | 114,3 | 17,5 | - | 3 1/2" | 60,3 | 10,0 | 100 | 2,89 | X-KOR114317560310 | |
| 100 | 4" | 114,3 | 17,5 | - | 3 1/2" | 60,3 | 8,0 | 100 | 2,77 | X-KOR11431756038 | |
| 100 | 4" | 114,3 | 17,5 | - | 3 1/2" | 76,1 | 12,5 | 100 | 2,43 | X-KOR1143175761125 | |
| 100 | 4" | 114,3 | 17,5 | - | 3 1/2" | 76,1 | 14,2 | 100 | 3,34 | X-KOR1143175761142 | |
| 100 | 4" | 114,3 | 17,5 | - | 3 1/2" | 88,9 | 11,0 | 100 | 3,13 | X-KOR114317588911 | |
| 100 | 4" | 114,3 | 17,5 | - | 3 1/2" | 88,9 | 14,2 | 100 | 3,34 | X-KOR1143175889142 | |
| 100 | 4" | 114,3 | 17,5 | - | 3 1/2" | 88,9 | 16,0 | 100 | 3,47 | X-KOR114317588916 | |
| 100 | 4" | 114,3 | 20,0 | - | 3 1/2" | 76,1 | 12,5 | 100 | 3,24 | X-KOR114320761125 | |
| 100 | 4" | 114,3 | 3,6 | 50 | 2" | 60,3 | 10,0 | 100 | 1,68 | X-KOR11433660310 | |
| 100 | 4" | 114,3 | 3,6 | 65 | 2 1/2" | 76,1 | 2,9 | 100 | 1,11 | X-KOR11433676129 | |
| 100 | 4" | 114,3 | 6,3 | - | 3 1/2" | 108,0 | 11,0 | 100 | 2,16 | X-KOR11436310811 | |
| 125 | 5" | 139,7 | 17,5 | - | 3 1/2" | 101,6 | 12,5 | 127 | 4,96 | X-KOR13971751016125 | |
| 125 | 5" | 139,7 | 17,5 | - | 3 1/2" | 76,1 | 10,0 | 127 | 4,5 | X-KOR139717576110 | |
| 125 | 5" | 139,7 | 17,5 | - | 3 1/2" | 88,9 | 11,0 | 127 | 4,76 | X-KOR139717588911 | |
| 125 | 5" | 139,7 | 20,0 | - | 3 1/2" | 88,9 | 11,0 | 127 | 4,76 | X-KOR13972088911 | |
| 125 | 5" | 139,7 | 22,2 | - | 3 1/2" | 60,3 | 8,0 | 127 | 4,7 | X-KOR13972226038 | |
| 125 | 5" | 139,7 | 22,2 | - | 3 1/2" | 76,1 | 12,5 | 127 | 5,36 | X-KOR1397222761125 | |
| 125 | 5" | 139,7 | 28,0 | - | 3 1/2" | 76,1 | 14,2 | 127 | 4,7 | X-KOR139728761142 | |
| 125 | 5" | 139,7 | 32,0 | - | 3 1/2" | 88,9 | 14,2 | 127 | 6,67 | X-KOR139732889142 | |
| 125 | 5" | 139,7 | 4,0 | 100 | 4" | 114,3 | 3,6 | 127 | 1,68 | X-KOR13974114336 | |
| 125 | 5" | 139,7 | 4,0 | - | 3 1/2" | 133,0 | 25,0 | 127 | 5,46 | X-KOR1397413325 | |
| 125 | 5" | 139,7 | 4,0 | 80 | 3" | 88,9 | 3,2 | 127 | 1,66 | X-KOR1397488932 | |
| 200 | 8" | 219,1 | 5,9 | - | 3 1/2" | 193,7 | 25,0 | 152 | 10,72 | X-KOR219159193725 |
