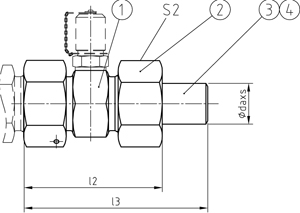

Typ GDV

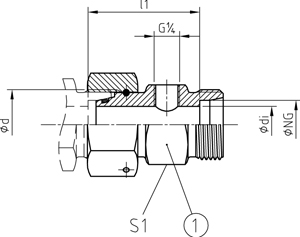

24° Kegel-Konus Adapter mit G 1/4 Innengewinde für Messkupplungen.

REIHE	PN	NG	ABMESSUNGEN [mm]							GEWICHT	BESTELLCODE		CAD
SERIES	PN	NG	DIMENSIONS							WEIGHT	ORDER CODE		DOWNLOAD
	[bar]	[mm]	d	di	l1	l2	l3	S1	S2	[kg]	Pos. 1	Pos. 1-4	Pos. 1
L	250	15	M22x1,5	10	45	63,5	82,5	32	27	0,169	GDV 15	GDV 15 daxs
L	160	18	M26x1,5	13	45	64,5	84,5	36	32	0,214	GDV 18	GDV 18 daxs
L	160	22	M30x2,0	17	51,5	73	94	41	36	0,278	GDV 22	GDV 22 daxs
L	100	28	M36x2,0	23	51	73,5	97	46	41	0,331	GDV 28	GDV 28 daxs
L	100	35	M45x2,0	24	53	79	105,5	46	50	0,44	GDV 35	GDV 35 daxs
L	100	42	M52x2,0	32	53	78,5	105	55	60	0,55	GDV 42	GDV 42 daxs
S	630	10	M18x1,5	6	46,5	64	80	32	22	0,196	GDV 10	GDV 10 daxs
S	420	12	M20x1,5	8	46,5	64	80	32	24	0,203	GDV 12	GDV 12 daxs
S	420	16	M24x1,5	11	49	69,5	91,5	36	30	0,238	GDV 16	GDV 16 daxs
S	315	20	M30x2,0	15	52	78	101	41	36	0,399	GDV 20	GDV 20 daxs
S	315	25	M36x2,0	19	56	83	110,5	41	46	0,517	GDV 25	GDV 25 daxs
S	250	30	M42x2,0	24	57	86,5	115,5	46	50	0,632	GDV 30	GDV 30 daxs
S	250	38	M52x2,0	30	59	92	124	55	60	0,871	GDV 38	GDV 38 daxs
S	250	50	M68x2,0	40	72	111	140	70	80	1,92	GDV 50	GDV 50 daxs

Gerader Druckprüf- und Entlüftungsadapter
