Typ HVAB
×
![Full Image]()
Baureihe / Series: S = heavy
Zum Absperren eines Druckmittelstroms in einer Richtung. Für hohe Temperaturen (Stahl max. 300°C, Edelstahl max. 400°C) geeignet.
| Werkstoff, Oberflächen | Bestellcode |
| Stahl, verzinkt; NBR | 01 |
| Stahl, verzinkt; FKM | 02 |
| Stahl, phosphatiert; NBR | 04 |
| Stahl phosphatiert; FKM | 05 |
| Edelstahl 1.4571; NBR | 41 |
| Edelstahl 1.4571; FKM | 42 |

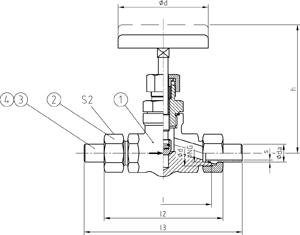

| REIHE | PN | NG | DN | ABMESSUNGEN [mm] | GEWICHT | BESTELLCODE | CAD | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SERIES | DIMENSIONS | WEIGHT | ORDER CODE | DOWNLOAD | ||||||||||
| [bar] | [mm] | [mm] | d | d | l | l2 | l3 | h | S2 | [kg] | Pos. 1 | Pos. 1-4 | ||
| S | 420 | 10 | 6 | M18x1,5 | 90 | 71 | 91 | 123 | 130 | 22 | 0,715 | HVAB 10 | HVAB 10 daxs | |
| S | 420 | 12 | 8 | M20x1,5 | 90 | 71 | 92 | 124 | 130 | 24 | 0,725 | HVAB 12 | HVAB 12 daxs | |
| S | 420 | 16 | 12 | M24x1,5 | 90 | 89 | 113 | 156 | 135 | 30 | 1,32 | HVAB 16 | HVAB 16 daxs | |
| S | 420 | 20 | 16 | M30x2,0 | 90 | 89 | 116 | 162 | 135 | 36 | 1,41 | HVAB 20 | HVAB 20 daxs | |
| S | 420 | 25 | 20 | M36x2,0 | 150 | 118 | 148 | 203 | 160 | 46 | 3,03 | HVAB 25 | HVAB 25 daxs | |
| S | 250 | 30 | 25 | M42x2,0 | 150 | 117 | 147 | 206 | 160 | 50 | 3,16 | HVAB 30 | HVAB 30 daxs | |
| S | 250 | 38 | 32 | M52x2,0 | 150 | 148 | 181 | 246 | 170 | 60 | 6,25 | HVAB 38 | HVAB 38 daxs | |
