Einstellbare T-Schwenkverschraubung

Typ TSKV

AVIT
BAUREIHE: S = Schwer

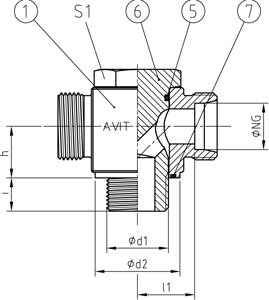

Einschraubzapfen mit O-Ring Dichtung mit zylindrischem Whitworth Rohrgewinde nach ISO 228-1 (Typ TSKV) oder metrischem Gewinde nach ISO 261 (Typ TSKVM).

Werkstoff, Oberflächen Bestellcode
Stahl, verzinkt; NBR 01
Stahl, verzinkt; FKM 02
Stahl, phosphatiert; NBR 04
Stahl, phosphatiert; FKM 05
Edelstahl 1.4571; NBR 41
Edelstahl 1.4571; FKM 42
Metrisches Gewinde (zylindrisch) TYP M NG

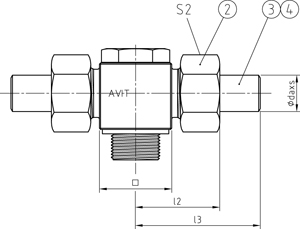

Verschraubung mit Überwurfmutter und Schneidring -SR
Verschraubung nur mit Überwurfmutter -A
PNNGABMESSUNGEN [mm]O-RINGGEWICHTBESTELLCODECAD
DIMENSIONSWEIGHTORDER CODEDOWNLOAD
[bar][mm]d1d2hil1l2l3S1S2Pos.5Pos.7[kg]Pos. 1+5-7Pos. 1-7Pos. 1+5-7
42010G 1/4 A22141219,537513019229,5x2,016,0x1,50,175TSKV 101TSKV 101 daxs
42010G 3/8 A24181219,5375330242214,0x2,018,0x1,50,258TSKV 102TSKV 102 daxs
42012G 3/8 A24181219,537,553,530242414,0x2,018,0x1,50,235TSKV 12TSKV 12 daxs
42016G 1/2 A30221425,54667,540303018,0x2,223,0x2,00,507TSKV 16TSKV 16 daxs
31520G 3/4 A4024,51628527545363625,3x2,431,0x2,50,82TSKV 20TSKV 20 daxs
25025G 1 A462818315885,550414629,8x2,637,0x2,51,18TSKV 25TSKV 25 daxs
25030G 1 1/4 A54362036,56594,560505038,0x2,545,0x2,51,94TSKV 30TSKV 30 daxs
25038G 1 1/2 A60402243,576108,575606043,0x3,051,0x3,03,007TSKV 38TSKV 38 daxs
25050G 2 A7554,5245897,5126,5100708055,0x3,064,0x3,07,15TSKV 50TSKV 50 daxs
42010M14x1,522141219,5375330242214,0x2,018,0x1,50,175TSKVM 101TSKVM 101daxs
42010M16x1,524181219,5375330242214,0x2,018,0x1,50,258TSKVM 102TSKVM 102daxs
42012M18x1,524181219,537,553,530242414,0x2,018,0x1,50,267TSKVM 12TSKVM 12 daxs
42016M22x1,530221425,54667,540303018,0x2,224,0x1,50,57TSKVM 16TSKVM 16 daxs
31520M27x2,04024,51628527545363625,3x2,431,0x2,50,82TSKVM 20TSKVM 20 daxs
25025M33x2,0462818315885,550414629,8x2,637,0x2,51,18TSKVM 25TSKVM 25 daxs
25030M42x2,054362036,56594,560505038,0x2,545,0x2,51,94TSKVM 30TSKVM 30 daxs
25038M48x2,060402243,576108,575606043,0x3,051,0x3,03,45TSKVM 38TSKVM 38 daxs
25050M60x2,07554,5245897,5126,5100708055,0x3,064,0x3,08,5TSKVM 50TSKVM 50 daxs
