Typ WSV
×
![Full Image]()
AVIT, ISO 8434-1 – BHE
Baureihe: S = Schwer

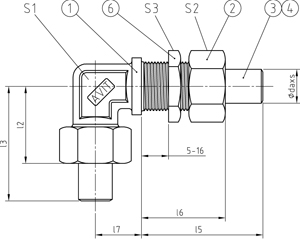

Winkelschottstutzen mit beidseitigem 24° Konusanschluss mit metrischem Gewinde nach ISO 8434-1. Schottdicke 5 – 16 mm.
| Werkstoff, Oberflächen | Bestellcode |
| Stahl, verzinkt; NBR | 01 |
| Stahl, verzinkt; FKM | 02 |
| Stahl, phosphatiert; NBR | 04 |
| Stahl, phosphatiert; FKM | 05 |
| Edelstahl 1.4571; NBR | 41 |
| Edelstahl 1.4571; FKM | 42 |
| REIHE | PN | NG | ABMESSUNGEN [mm] | GEWICHT | BESTELLCODE | CAD | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SERIES | DIMENSIONS | WEIGHT | ORDER CODE | DOWNLOAD | ||||||||||||||
| [bar] | [mm] | d | di | l1 | l2 | l3 | l4 | l5 | l6 | l7 | S1 | S2 | S3 | [kg] | Pos. 1+6 | Pos. 1-4 | Pos. 1+6 | |
| S | 800 | 10 | M18x1,5 | 7 | 17,5 | 35 | 51 | 50 | 63 | 47 | 20 | 24 | 24 | 24 | 0,125 | WSV 10 | WSV 10 daxs | |
| S | 630 | 12 | M20x1,5 | 8 | 21,5 | 39,5 | 56 | 51,5 | 65 | 48,5 | 21 | 27 | 27 | 27 | 0,162 | WSV 12 | WSV 12 daxs | |
| S | 630 | 16 | M24x1,5 | 12 | 24,5 | 45 | 67 | 55,5 | 73,5 | 52 | 24 | 32 | 32 | 32 | 0,249 | WSV 16 | WSV 16 daxs | |
| S | 420 | 20 | M30x2,0 | 16 | 26,5 | 50 | 73 | 63,5 | 80 | 57 | 30 | 41 | 36 | 41 | 0,394 | WSV 20 | WSV 20 daxs | |
| S | 420 | 25 | M36x2,0 | 20 | 30 | 57 | 85 | 69 | 89,5 | 62 | 34 | 46 | 46 | 46 | 0,675 | WSV 25 | WSV 25 daxs | |
| S | 420 | 30 | M42x2,0 | 25 | 35,5 | 64 | 93 | 76,5 | 95,5 | 66 | 39 | 50 | 50 | 50 | 0,938 | WSV 30 | WSV 30 daxs | |
| S | 420 | 38 | M52x2,0 | 32 | 41 | 73,5 | 106 | 80 | 102 | 70 | 43 | 65 | 65 | 65 | 1,45 | WSV 38 | WSV 38 daxs | |
