Typ DGA
×
![Full Image]()
AVIT
• Rohrdrehgelenk mit speziellem Doppel-Schräg-rillenkugellager
• Vormontierte Lieferung zur Selbstmontage
• Dichtungen sind vor dem Verschweißen auszubauen
| Werkstoff | Bestellcode |
| Vergütungsstahl 1.7225 | DGA NG |
| Edelstahl 1.4571 | EDGA NG |

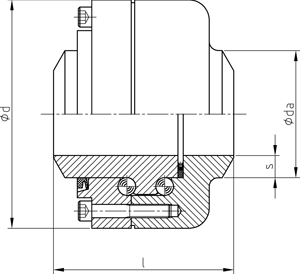

| PN | DN | ABMESSUNGEN [mm] | BESTELLCODE | CAD | ||
|---|---|---|---|---|---|---|
| DIMENSIONS | ORDER CODE | DOWNLOAD | ||||
| [bar] | [mm] | da x s | d | l | TYP DN daxs | |
| 160 | 20 | 25,0 x 3,0 | 88 | 90 | DGA 20 daxs | |
| 160 | 25 | 30,0 x 4,0 | 103 | 98 | DGA 25 daxs | |
| 160 | 32 | 8,0 x 5,0 | 118 | 103 | DGA 32 daxs | |
| 160 | 40 | 48,3 x 5,0 | 127 | 110 | DGA 40 daxs | |
| 160 | 50 | 60,3 x 6,3 | 145 | 120 | DGA 50 daxs | |
| 160 | 65 | 76,1 x 7,1 | 175 | 145 | DGA 65 daxs | |
| 160 | 80 | 101,6 x 8,8 | 205 | 162 | DGA 80 daxs | |
| 160 | 100 | 114,3 x 10,0 | 226 | 176 | DGA 100 daxs | |
| 160 | 125 | 139,7 x 8,0 | 226 | 192 | DGA 125 daxs | |
| 320 | 20 | 30,0 x 5,0 | 88 | 90 | DGA 20 daxs | |
| 320 | 25 | 42,4 x 7,1 | 103 | 98 | DGA 25 daxs | |
| 320 | 32 | 48,3 x 8,0 | 118 | 103 | DGA 32 daxs | |
| 320 | 40 | 60,3 x 10,0 | 127 | 110 | DGA 40 daxs | |
| 320 | 50 | 76,1 x 12,5 | 145 | 120 | DGA 50 daxs | |
| 320 | 65 | 88,9 x 14,2 | 175 | 145 | DGA 65 daxs | |
| 320 | 80 | 114,3 x 20,0 | 205 | 162 | DGA 80 daxs | |
| 320 | 100 | 139,7 x 22,2 | 226 | 176 | DGA 100 daxs | |
| 320 | 125 | 117,8 x 30,0 | 226 | 192 | DGA 125 daxs | |
