Typ DVL
×
![Full Image]()
AVIT
• Zur Kombination mit Geraden- und Winkel-Ein-
schraubverschraubungen
• Einschraubloch TYPE N (schmal) ISO 1179-1 mit zylindrischem Whitworth Rohrgewinde ISO 228-1
| Werkstoff | Bestellcode |
| Vergütungsstahl 1.7225 | DVL NG |
| Edelstahl 1.4571 | EDVL NG |

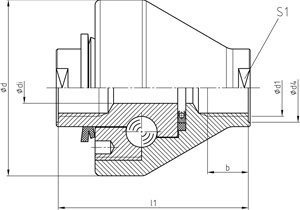

| PN | DN | ABMESSUNGEN [mm] | GEWICHT | BESTELLCODE | CAD | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| DIMENSIONS | WEIGHT | ORDER CODE | DOWNLOAD | ||||||||
| [bar] | [mm] | d1 | d4 | di | d | b | l1 | S1 | [kg] | TYP DN | |
| 320 | 10 | G 1/4 | 22 | 6 | 49 | 15 | 60 | 19 | 0,5 | DVL 10 | |
| 320 | 12 | G 3/8 | 24 | 8 | 56 | 15 | 65 | 22 | 0,6 | DVL 12 | |
| 320 | 16 | G 1/2 | 30 | 12 | 68 | 17 | 75 | 27 | 1,0 | DVL 16 | |
| 320 | 20 | G 3/4 | 40 | 15 | 78 | 19 | 87 | 36 | 1,7 | DVL 20 | |
| 320 | 25 | G 1 | 46 | 19 | 88 | 21 | 95 | 41 | 2,2 | DVL 25 | |
| 320 | 30 | G 1 1/4 | 54 | 24 | 98 | 23 | 110 | 50 | 3,3 | DVL 30 | |
| 320 | 38 | G 1 1/2 | 60 | 30 | 108 | 25 | 120 | 55 | 4,0 | DVL 38 | |
| 320 | 50 | G 2 | 75 | 38 | 128 | 30 | 140 | 70 | 7,0 | DVL 50 | |
