Typ ERV
×
![Full Image]()
Baureihe / Series: L = light / S = heavy
Durchfluss vom Rohr zum Einschraubzapfen. Öffnungsdruck 1 bar, Durchfluss max. 8 m/sec. Einschraubzapfen mit U-Ring Dichtung (ED) nach ISO 1179-2 (Whitworth) oder ISO 9974-2 (Metrisch).
| Werkstoff, Oberflächen | Bestellcode |
| Stahl, Zink-Nickel; NBR | 01 |
| Stahl, Zink-Nickel; FKM | 02 |
| Edelstahl 1.4571; NBR | 41 |
| Edelstahl 1.4571; FKM | 42 |

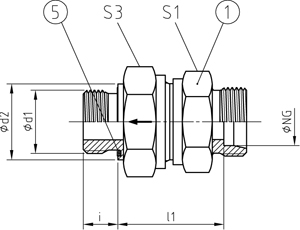

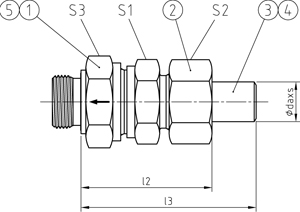

| TYPE | PN | NG | ABMESSUNGEN [mm] | U-RING | GEWICHT | BESTELLCODE | CAD | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIMENSIONS | WEIGHT | ORDER CODE | DOWNLOAD | |||||||||||||
| [bar] | [mm] | d1 | d2 | i | l1 | l2 | l3 | S1 | S2 | S3 | Pos. 5 | [kg] | Pos. 1+5 | Pos. 1-5 | Pos. 1+5 | |
| Whitworth | 420 | 8 | G 1/4 A | 18,9 | 12 | 31,5 | 46,5 | 62,5 | 19 | 19 | 19 | 11,6x16,5x1,5 | 0,085 | ERV 08 | ERV 08 daxs | |
| Whitworth | 420 | 10 | G 3/8 A | 21,9 | 12 | 38 | 56 | 72 | 24 | 22 | 22 | 14,7x18,9x1,5 | 0,15 | ERV 10 | ERV 10 daxs | |
| Whitworth | 420 | 12 | G 3/8 A | 21,9 | 12 | 41 | 59 | 75 | 27 | 24 | 24 | 14,7x18,9x1,5 | 0,185 | ERV 12 | ERV 12 daxs | |
| Whitworth | 420 | 16 | G 1/2 A | 26,9 | 14 | 48 | 68,5 | 90 | 36 | 30 | 32 | 18,5x23,9x1,5 | 0,32 | ERV 16 | ERV 16 daxs | |
| Whitworth | 420 | 20 | G 3/4 A | 31,9 | 16 | 52 | 76 | 99 | 46 | 36 | 41 | 23,9x29,2x1,5 | 0,595 | ERV 20 | ERV 20 daxs | |
| Whitworth | 250 | 25 | G 1 A | 39,9 | 18 | 54,5 | 81,5 | 109 | 50 | 46 | 46 | 29,7x35,7x2,0 | 0,85 | ERV 25 | ERV 25 daxs | |
| Whitworth | 250 | 30 | G 1 1/4 A | 49,9 | 20 | 64 | 92,5 | 122 | 60 | 50 | 60 | 38,8x45,8x2,0 | 1,36 | ERV 30 | ERV 30 daxs | |
| Whitworth | 250 | 38 | G 1 1/2 A | 54,9 | 22 | 69,5 | 102 | 134,5 | 70 | 60 | 65 | 44,7x50,7x2,0 | 1,95 | ERV 38 | ERV 38 daxs | |
| Metrisch | 420 | 8 | M14x1,5 | 18,9 | 12 | 31,5 | 46,5 | 62,5 | 19 | 19 | 19 | 11,6x16,5x1,5 | 0,085 | ERVM 08 | ERVM 08 daxs | |
| Metrisch | 420 | 10 | M16x1,5 | 21,9 | 12 | 38 | 56 | 72 | 27 | 24 | 24 | 13,8x18,9x1,5 | 0,15 | ERVM 10 | ERVM 10 daxs | |
| Metrisch | 420 | 12 | M18x1,5 | 23,9 | 12 | 41 | 59 | 75 | 27 | 24 | 24 | 15,7x20,9x1,5 | 0,18 | ERVM 12 | ERVM 12 daxs | |
| Metrisch | 420 | 16 | M22x1,5 | 26,9 | 14 | 48 | 68,5 | 90 | 36 | 30 | 32 | 19,6x24,3x1,5 | 0,325 | ERVM 16 | ERVM 16 daxs | |
| Metrisch | 420 | 20 | M27x2,0 | 31,9 | 16 | 52 | 76 | 99 | 46 | 36 | 41 | 23,9x29,2x1,5 | 0,595 | ERVM 20 | ERVM 20 daxs | |
| Metrisch | 250 | 25 | M33x2,0 | 39,9 | 18 | 54,5 | 81,5 | 109 | 50 | 46 | 46 | 29,7x35,7x2,0 | 0,84 | ERVM 25 | ERVM 25 daxs | |
| Metrisch | 250 | 30 | M42x2,0 | 49,9 | 20 | 64 | 92,5 | 122 | 60 | 50 | 60 | 38,8x45,8x2,0 | 1,345 | ERVM 30 | ERVM 30 daxs | |
| Metrisch | 250 | 38 | M48x2,0 | 54,9 | 22 | 69,5 | 102 | 134,5 | 70 | 60 | 65 | 44,7x50,7x2,0 | 1,968 | ERVM 38 | ERVM 38 daxs | |
