Typ SKV
×
![Full Image]()
AVIT
BAUREIHE: S = Schwer
Einschraubzapfen mit O-Ring Dichtung mit zylindrischem Whitworth Rohrgewinde nach ISO 228-1 (Typ SKV) oder metrischem Gewinde nach ISO 261 (Typ SKVM).
| Werkstoff, Oberflächen | Bestellcode |
| Stahl, verzinkt; NBR | 01 |
| Stahl, verzinkt; FKM | 02 |
| Stahl, phosphatiert; NBR | 04 |
| Stahl, phosphatiert; FKM | 05 |
| Edelstahl 1.4571; NBR | 41 |
| Edelstahl 1.4571; FKM | 42 |
| Metrisches Gewinde (zylindrisch) | TYP M NG |
| Verschraubung mit Überwurfmutter und Schneidring | -SR |
| Verschraubung nur mit Überwurfmutter | -A |

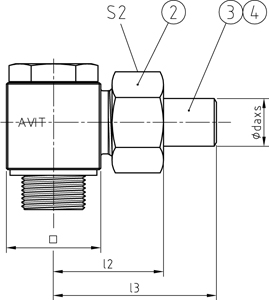

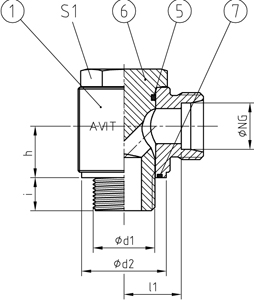

| PN | NG | ABMESSUNGEN [mm] | O-RING | GEWICHT | BESTELLCODE | CAD | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIMENSIONS | WEIGHT | ORDER CODE | DOWNLOAD | ||||||||||||||
| [bar] | [mm] | d1 | d2 | h | i | l1 | l2 | l3 | □ | S1 | S2 | Pos.5 | Pos.7 | [kg] | Pos. 1+5-7 | Pos. 1-7 | Pos. 1+5-7 |
| 500 | 10 | G 1/4 A | 22 | 18 | 12 | 19,5 | 37 | 53 | 30 | 19 | 22 | 9,5x2,0 | 16,0x1,5 | 0,134 | SKV 101 | SKV 101 daxs | |
| 500 | 10 | G 3/8 A | 24 | 18 | 12 | 19,5 | 37 | 53 | 30 | 24 | 22 | 14,0x2,0 | 18,0x1,5 | 0,223 | SKV 102 | SKV 102 daxs | |
| 420 | 12 | G 3/8 A | 24 | 18 | 12 | 19,5 | 37,5 | 53,5 | 30 | 24 | 24 | 14,0x2,0 | 18,0x1,5 | 0,222 | SKV 12 | SKV 12 daxs | |
| 420 | 16 | G 1/2 A | 30 | 22 | 14 | 25,5 | 46 | 67,5 | 40 | 30 | 30 | 18,0x2,2 | 23,0x2,0 | 0,489 | SKV 16 | SKV 16 daxs | |
| 315 | 20 | G 3/4 A | 40 | 24,5 | 16 | 28 | 52 | 75 | 45 | 36 | 36 | 25,3x2,4 | 31,0x2,5 | 0,688 | SKV 20 | SKV 20 daxs | |
| 250 | 25 | G 1 A | 46 | 28 | 18 | 31 | 58 | 85,5 | 50 | 41 | 46 | 29,8x2,6 | 37,0x2,5 | 0,969 | SKV 25 | SKV 25 daxs | |
| 250 | 30 | G 1 1/4 A | 54 | 36 | 20 | 36,5 | 65 | 94,5 | 60 | 50 | 50 | 38,0x2,5 | 45,0x2,5 | 1,637 | SKV 30 | SKV 30 daxs | |
| 250 | 38 | G 1 1/2 A | 60 | 40 | 22 | 43,5 | 76 | 108,5 | 75 | 60 | 60 | 43,0x3,0 | 51,0x3,0 | 2,893 | SKV 38 | SKV 38 daxs | |
| 250 | 50 | G 2 A | 75 | 54,5 | 24 | 58 | 97,5 | 126,5 | 100 | 70 | 80 | 55,0x3,0 | 64,0x3,0 | 6,99 | SKV 50 | SKV 50 daxs | |
| 500 | 10 | M14x1,5 | 24 | 18 | 12 | 19,5 | 37 | 53 | 30 | 24 | 22 | 14,0x2,0 | 18,0x1,5 | 0,167 | SKVM 101 | SKVM 101 daxs | |
| 500 | 10 | M16x1,5 | 24 | 18 | 12 | 19,5 | 37 | 53 | 30 | 24 | 22 | 14,0x2,0 | 18,0x1,5 | 0,22 | SKVM 102 | SKVM 102 daxs | |
| 420 | 12 | M18x1,5 | 24 | 18 | 12 | 19,5 | 37,5 | 53,5 | 30 | 24 | 24 | 14,0x2,0 | 18,0x1,5 | 0,233 | SKVM 12 | SKVM 12 daxs | |
| 420 | 16 | M22x1,5 | 30 | 22 | 14 | 25,5 | 46 | 67,5 | 40 | 30 | 30 | 18,0x2,2 | 24,0x1,5 | 0,477 | SKVM 16 | SKVM 16 daxs | |
| 315 | 20 | M27x2,0 | 40 | 24,5 | 16 | 28 | 52 | 75 | 45 | 36 | 36 | 25,3x2,4 | 31,0x2,5 | 0,696 | SKVM 20 | SKVM 20 daxs | |
| 250 | 25 | M33x2,0 | 46 | 28 | 18 | 31 | 58 | 85,5 | 50 | 41 | 46 | 29,8x2,6 | 37,0x2,5 | 0,969 | SKVM 25 | SKVM 25 daxs | |
| 250 | 30 | M42x2,0 | 54 | 36 | 20 | 36,5 | 65 | 94,5 | 60 | 50 | 50 | 38,0x2,5 | 45,0x2,5 | 1,639 | SKVM 30 | SKVM 30 daxs | |
| 250 | 38 | M48x2,0 | 60 | 40 | 22 | 43,5 | 76 | 108,5 | 75 | 60 | 60 | 43,0x3,0 | 51,0x3,0 | 2,887 | SKVM 38 | SKVM 38 daxs | |
| 250 | 50 | M60x2,0 | 75 | 54,5 | 24 | 58 | 97,5 | 126,5 | 100 | 70 | 80 | 55,0x3,0 | 64,0x3,0 | 6,99 | SKVM 50 | SKVM 50 daxs | |
