Typ GU.
×
![Full Image]()

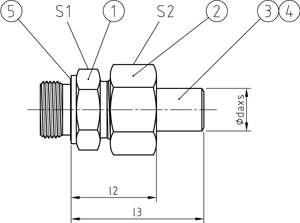

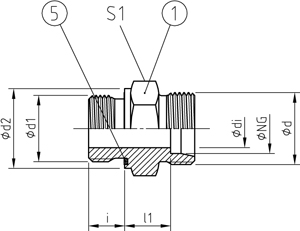

AVIT ≈ ISO 8434-1 – SDS Typ E
BAUREIHE: L = Leicht / S = Schwer
Einschraubzapfen mit U-Ring Dichtung (ED) und zylindrischem Whitworth Rohrgewinde nach ISO 1179-2 (Typ GU.) oder metrischem Gewinde nach ISO 9974-2 (Typ GU.M)
| Werkstoff, Oberflächen | Bestellcode |
| Stahl, verzinkt; NBR | 01 |
| Stahl, verzinkt; FKM | 02 |
| Stahl, phosphatiert; NBR | 04 |
| Stahl, phosphatiert; FKM | 05 |
| Edelstahl 1.4571; NBR | 41 |
| Edelstahl 1.4571; FKM | 42 |
| Reduzierte Nenn- / Gewindegröße | TYP R NG |
| Größere Nenn- / Gewindegröße | TYP G NG |
| Metrisches Gewinde (zylindrisch) | TYP M NG |
| Verschraubung mit Überwurfmutter und Schneidring | -SR |
| Verschraubung nur mit Überwurfmutter | -A |
| REIHE | PN | NG | ABMESSUNGEN [mm] | U-RING | GEWICHT | BESTELLCODE | CAD | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SERIE | DIMENSIONS | WEIGHT | ORDER CODE | DOWNLOAD | |||||||||||||
| [bar] | [mm] | d1 | d2 | d | di | i | l1 | l2 | l3 | S1 | S2 | Pos. 5 | [kg] | Pos. 1+5 | Pos. 1-5 | Pos. 1+5 | |
| L | 420 | 15 | G 3/8 A | 21,9 | M22x1,5 | 9 | 15 | 32,5 | 51,5 | 12 | 24 | 27 | 14,7x18,9x1,5 | 0,061 | GUR 15 | GUR 15 daxs | |
| L | 420 | 15 | G 1/2 A | 26,9 | M22x1,5 | 11 | 14 | 31,5 | 50,5 | 14 | 27 | 27 | 18,5x23,9x1,5 | 0,075 | GUV 15 | GUV 15 daxs | |
| L | 420 | 15 | G 3/4 A | 31,9 | M22x1,5 | 11 | 17 | 34,5 | 53,5 | 16 | 32 | 27 | 23,9x29,2x1,5 | 0,128 | GUG 15 | GUG 15 daxs | |
| L | 420 | 18 | G 3/8 A | 21,9 | M26x1,5 | 11 | 15,5 | 34,5 | 54,5 | 12 | 27 | 32 | 14,7x18,9x1,5 | 0,075 | GUR 18 | GUR 18 daxs | |
| L | 420 | 18 | G 1/2 A | 26,9 | M26x1,5 | 14 | 14,5 | 33,5 | 53,5 | 14 | 27 | 32 | 18,5x23,9x1,5 | 0,075 | GUV 18 | GUV 18 daxs | |
| L | 420 | 18 | G 3/4 A | 31,9 | M26x1,5 | 15 | 16,5 | 35,5 | 55,5 | 16 | 32 | 32 | 23,9x29,2x1,5 | 0,126 | GUG 18 | GUG 18 daxs | |
| L | 250 | 22 | G 1/2 A | 26,9 | M30x2,0 | 14 | 17,5 | 36 | 57 | 14 | 32 | 36 | 18,5x23,9x1,5 | 0,107 | GUR 22 | GUR 22 daxs | |
| L | 250 | 22 | G 3/4 A | 31,9 | M30x2,0 | 18 | 16,5 | 35 | 56 | 16 | 32 | 36 | 23,9x29,2x1,5 | 0,109 | GUV 22 | GUV 22 daxs | |
| L | 250 | 22 | G 1 A | 39,9 | M30x2,0 | 19 | 18,5 | 37 | 58 | 18 | 41 | 36 | 29,7x35,7x2,0 | 0,201 | GUG 22 | GUG 22 daxs | |
| L | 250 | 28 | G 3/4 A | 31,9 | M36x2,0 | 18 | 18,5 | 38 | 61,5 | 16 | 41 | 41 | 23,9x29,2x1,5 | 0,175 | GUR 28 | GUR 28 daxs | |
| L | 250 | 28 | G 1 A | 39,9 | M36x2,0 | 23 | 17,5 | 37 | 60,5 | 18 | 41 | 41 | 29,7x35,7x2,0 | 0,174 | GUV 28 | GUV 28 daxs | |
| L | 250 | 28 | G 1 1/4 A | 49,9 | M36x2,0 | 24 | 20,5 | 40 | 63,5 | 20 | 50 | 41 | 38,8x45,8x2,0 | 0,308 | GUG 28 | GUG 28 daxs | |
| L | 250 | 35 | G 1 A | 39,9 | M45x2,0 | 23 | 19,5 | 44 | 70,5 | 18 | 46 | 50 | 29,7x35,7x2,0 | 0,269 | GUR 35 | GUR 35 daxs | |
| L | 250 | 35 | G 1 1/4 A | 49,9 | M45x2,0 | 30 | 17,5 | 42 | 68,5 | 20 | 50 | 50 | 38,8x45,8x2,0 | 0,289 | GUV 35 | GUV 35 daxs | |
| L | 250 | 35 | G 1 1/2 A | 54,9 | M45x2,0 | 30 | 21,5 | 46 | 72,5 | 22 | 55 | 50 | 44,7x50,7x2,0 | 0,47 | GUG 35 | GUG 35 daxs | |
| L | 250 | 42 | G 1 A | 39,9 | M52x2,0 | 23 | 21 | 45,5 | 72 | 18 | 55 | 60 | 29,7x35,7x2,0 | 0,384 | GUR 421 | GUR 421 daxs | |
| L | 250 | 42 | G 1 1/4 A | 49,9 | M52x2,0 | 30 | 21 | 45,5 | 72 | 20 | 55 | 60 | 38,8x45,8x2,0 | 0,402 | GUR 42 | GUR 42 daxs | |
| L | 250 | 42 | G 1 1/2 A | 54,9 | M52x2,0 | 36 | 19 | 43,5 | 70 | 22 | 55 | 60 | 44,7x50,7x2,0 | 0,367 | GUV 42 | GUV 42 daxs | |
| S | 800 | 10 | G 1/4 A | 18,9 | M18x1,5 | 5 | 15 | 32,5 | 48,5 | 12 | 19 | 22 | 11,6x16,5x1,5 | 0,065 | GUR 10 | GUR 10 daxs | |
| S | 800 | 10 | G 3/8 A | 21,9 | M18x1,5 | 7 | 15,5 | 33 | 49 | 12 | 22 | 22 | 14,7x18,9x1,5 | 0,075 | GUV 10 | GUV 10 daxs | |
| S | 800 | 10 | G 1/2 A | 26,9 | M18x1,5 | 7 | 17,5 | 35,5 | 51,5 | 12 | 27 | 22 | 18,5x23,9x1,5 | 0,087 | GUG 10 | GUG 10 daxs | |
| S | 630 | 12 | G 1/4 A | 18,9 | M20x1,5 | 5 | 15 | 33 | 49 | 12 | 22 | 24 | 11,6x16,5x1,5 | 0,061 | GUR 12 | GUR 12 daxs | |
| S | 630 | 12 | G 3/8 A | 21,9 | M20x1,5 | 8 | 17 | 35 | 51,5 | 12 | 22 | 24 | 14,7x18,9x1,5 | 0,065 | GUV 12 | GUV 12 daxs | |
| S | 630 | 12 | G 1/2 A | 26,9 | M20x1,5 | 8 | 17,5 | 35,5 | 51,5 | 14 | 27 | 24 | 18,5x23,9x1,5 | 0,09 | GUG 12 | GUG 12 daxs | |
| S | 630 | 16 | G 1/4 A | 18,9 | M24x1,5 | 5 | 17,5 | 38 | 59,5 | 12 | 27 | 30 | 11,6x16,5x1,5 | 0,082 | GUR 161 | GUR 161 daxs | |
| S | 630 | 16 | G 3/8 A | 21,9 | M24x1,5 | 8 | 18 | 38,5 | 60 | 12 | 27 | 30 | 14,7x18,9x1,5 | 0,088 | GUR 16 | GUR 16 daxs | |
| S | 630 | 16 | G 1/2 A | 26,9 | M24x1,5 | 12 | 18,5 | 39 | 60,5 | 14 | 27 | 30 | 18,5x23,9x1,5 | 0,096 | GUV 16 | GUV 16 daxs | |
| S | 630 | 16 | G 3/4 A | 31,9 | M24x1,5 | 12 | 20,5 | 41 | 62,5 | 16 | 32 | 30 | 23,9x29,2x1,5 | 0,144 | GUG 16 | GUG 16 daxs | |
| S | 630 | 16 | G 1 A | 39,9 | M24x1,5 | 12 | 22,5 | 43 | 64,5 | 18 | 41 | 30 | 29,7x35,7x2,0 | 0,251 | GUG 161 | GUG 161 daxs | |
| S | 420 | 20 | G 3/8 A | 21,9 | M30x2,0 | 8 | 20 | 44 | 66,5 | 12 | 32 | 36 | 14,7x18,9x1,5 | 0,14 | GUR 201 | GUR 201 daxs | |
| S | 420 | 20 | G 1/2 A | 26,9 | M30x2,0 | 12 | 20,5 | 44,5 | 67 | 14 | 32 | 36 | 18,5x23,9x1,5 | 0,149 | GUR 20 | GUR 20 daxs | |
| S | 420 | 20 | G 3/4 A | 31,9 | M30x2,0 | 15 | 20,5 | 44,5 | 67 | 16 | 32 | 36 | 23,9x29,2x1,5 | 0,165 | GUV 20 | GUV 20 daxs | |
| S | 420 | 20 | G 1 A | 39,9 | M30x2,0 | 15 | 22,5 | 46,5 | 69 | 18 | 41 | 36 | 29,7x35,7x2,0 | 0,29 | GUG 20 | GUG 20 daxs | |
| S | 420 | 20 | G 1 1/4 A | 49,9 | M30x2,0 | 15 | 24,5 | 48 | 71 | 20 | 50 | 36 | 38,8x45,8x2,0 | 0,435 | GUG 201 | GUG 201 daxs | |
| S | 420 | 25 | G 1/2 A | 26,9 | M36x2,0 | 12 | 23 | 50 | 77,5 | 14 | 41 | 46 | 18,5x23,9x1,5 | 0,254 | GUR 251 | GUR 251 daxs | |
| S | 420 | 25 | G 3/4 A | 31,9 | M36x2,0 | 15 | 23 | 50 | 77,5 | 16 | 41 | 46 | 23,9x29,2x1,5 | 0,268 | GUR 25 | GUR 25 daxs | |
| S | 420 | 25 | G 1 A | 39,9 | M36x2,0 | 19 | 23 | 50 | 77,5 | 18 | 41 | 46 | 29,7x35,7x2,0 | 0,288 | GUV 25 | GUV 25 daxs | |
| S | 420 | 25 | G 1 1/4 A | 49,9 | M36x2,0 | 19 | 25 | 52 | 79,5 | 20 | 50 | 46 | 38,8x45,8x2,0 | 0,495 | GUG 25 | GUG 25 daxs | |
| S | 420 | 25 | G 1 1/2 A | 54,9 | M36x2,0 | 19 | 26 | 53 | 80,5 | 22 | 55 | 46 | 44,7x50,7x2,0 | 0,66 | GUG 251 | GUG 251 daxs | |
| S | 420 | 30 | G 3/4 A | 31,9 | M42x2,0 | 15 | 24,5 | 53 | 82,5 | 16 | 46 | 50 | 23,9x29,2x1,5 | 0,359 | GUR 301 | GUR 301 daxs | |
| S | 420 | 30 | G 1 A | 39,9 | M42x2,0 | 19 | 24,5 | 53 | 82,5 | 18 | 46 | 50 | 29,7x35,7x2,0 | 0,38 | GUR 30 | GUR 30 daxs | |
| S | 420 | 30 | G 1 1/4 A | 49,9 | M42x2,0 | 24 | 23,5 | 52 | 81,5 | 20 | 50 | 50 | 38,8x45,8x2,0 | 0,464 | GUV 30 | GUV 30 daxs | |
| S | 420 | 30 | G 1 1/2 A | 54,9 | M42x2,0 | 24 | 26,5 | 55 | 84,5 | 22 | 55 | 50 | 44,7x50,7x2,0 | 0,641 | GUG 30 | GUG 30 daxs | |
| S | 420 | 30 | G 2 A | 69,9 | M42x2,0 | 24 | 30,5 | 59 | 88,5 | 24 | 70 | 50 | 56,1x62,7x2,5 | 0,963 | GUG 301 | GUG 301 daxs | |
| S | 420 | 38 | G 1 A | 39,9 | M52x2,0 | 19 | 26 | 58,5 | 91 | 18 | 55 | 60 | 29,7x35,7x2,0 | 0,579 | GUR 381 | GUR 381 daxs | |
| S | 420 | 38 | G 1 1/4 A | 49,9 | M52x2,0 | 24 | 26 | 58,5 | 91 | 20 | 55 | 60 | 38,8x45,8x2,0 | 0,626 | GUR 38 | GUR 38 daxs | |
| S | 420 | 38 | G 1 1/2 A | 54,9 | M52x2,0 | 30 | 26 | 58,5 | 91 | 22 | 55 | 60 | 44,7x50,7x2,0 | 0,628 | GUV 38 | GUV 38 daxs | |
| S | 420 | 38 | G 1 3/4 A | 59,9 | M52x2,0 | 30 | 27 | 59,5 | 92 | 24 | 60 | 60 | 50,4x56,7x2,5 | 0,816 | GUG 38 | GUG 38 daxs | |
| S | 420 | 38 | G 2 A | 69,9 | M52x2,0 | 30 | 30 | 62,5 | 95 | 24 | 70 | 60 | 56,1x62,7x2,5 | 1,171 | GUG 381 | GUG 381 daxs | |
| S | 420 | 50 | G 1 1/4 A | 49,9 | M68x2,0 | 24 | 31 | 70,5 | 99,5 | 20 | 70 | 80 | 38,8x45,8x2,0 | 1,123 | GUR 501 | GUR 501 daxs | |
| S | 420 | 50 | G 1 1/2 A | 54,9 | M68x2,0 | 30 | 31 | 70,5 | 99,5 | 22 | 70 | 80 | 44,7x50,7x2,0 | 1,126 | GUR 50 | GUR 50 daxs | |
| S | 420 | 50 | G 2 A | 69,9 | M68x2,0 | 40 | 32 | 71,5 | 100,5 | 24 | 70 | 80 | 56,1x62,7x2,5 | 1,152 | GUV 50 | GUV 50 daxs | |
